AfterVLX 80 Casement Window in Royal Palm Beach, FL | TruePane Windows & Doors
The VLX 80 Casement Window is a side-hinged aluminum window built around two things Royal Palm Beach homeowners ask for constantly: clean sightlines that don’t interrupt the view, and real ventilation when the afternoon heat lets up. It’s an engineered aluminum frame with a profile width under two inches, which means more glass and less metal. TruePane Windows & Doors is an authorized installation partner for the manufacturer behind the VLX 80. That matters because authorization means factory-backed training, direct access to warranty support, and installation that won’t put your coverage at risk. We serve Royal Palm Beach and the surrounding communities. Call (386) 251-6745 to schedule a free on-site measurement and get a written quote.
Product Overview - VLX 80 Casement Window

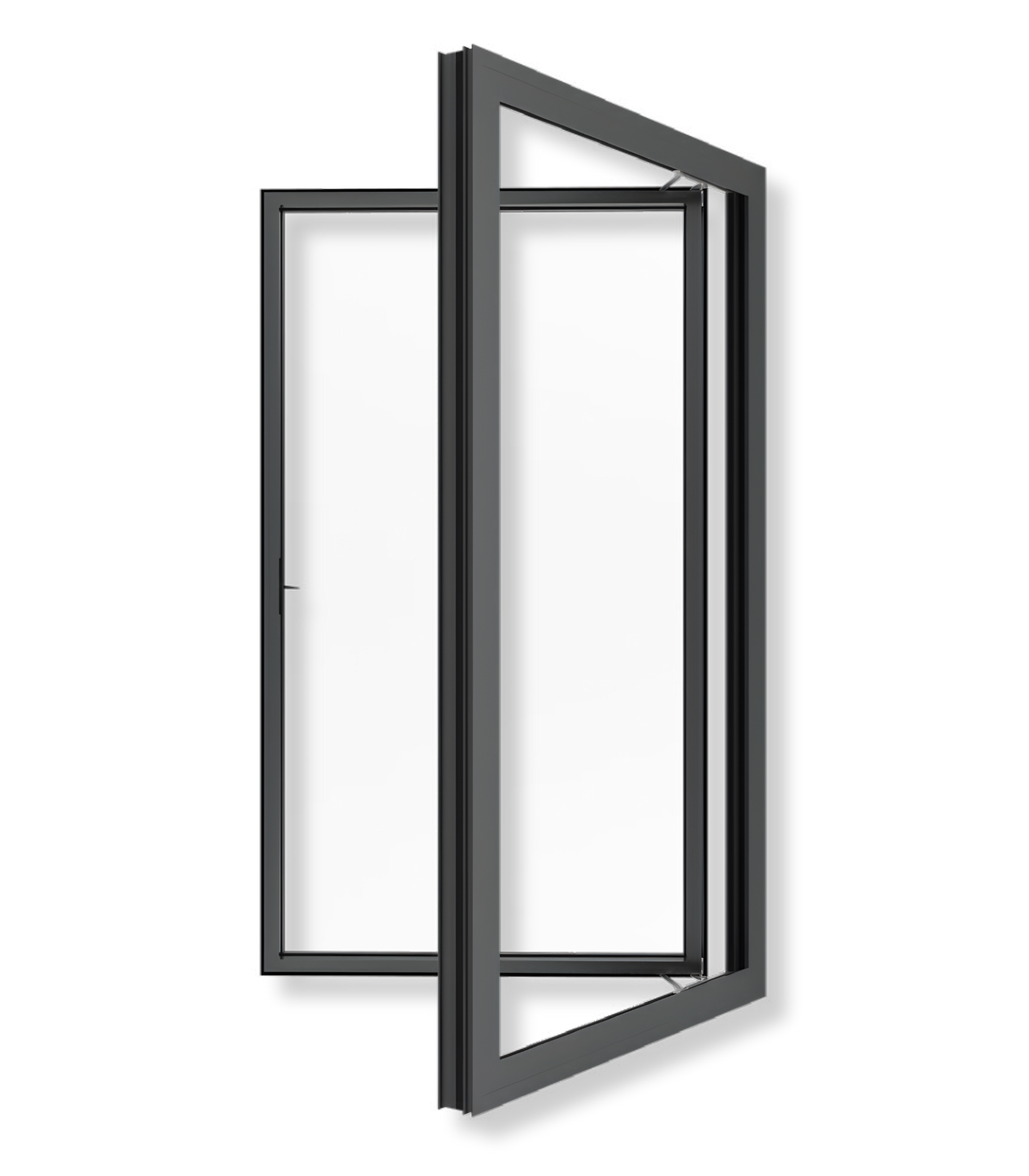

The VLX 80 is designed for people who want a window that performs like a modern architectural product but still feels traditional enough for a Florida home. The casement design means the sash is hinged at the side and cranks outward, which gives you full top-to-bottom ventilation. Unlike a sliding window that only opens halfway, a casement catches the breeze and directs it inward. In Royal Palm Beach, where cross-ventilation makes a real difference against humidity and air conditioning costs, that’s a practical advantage, not a style point.

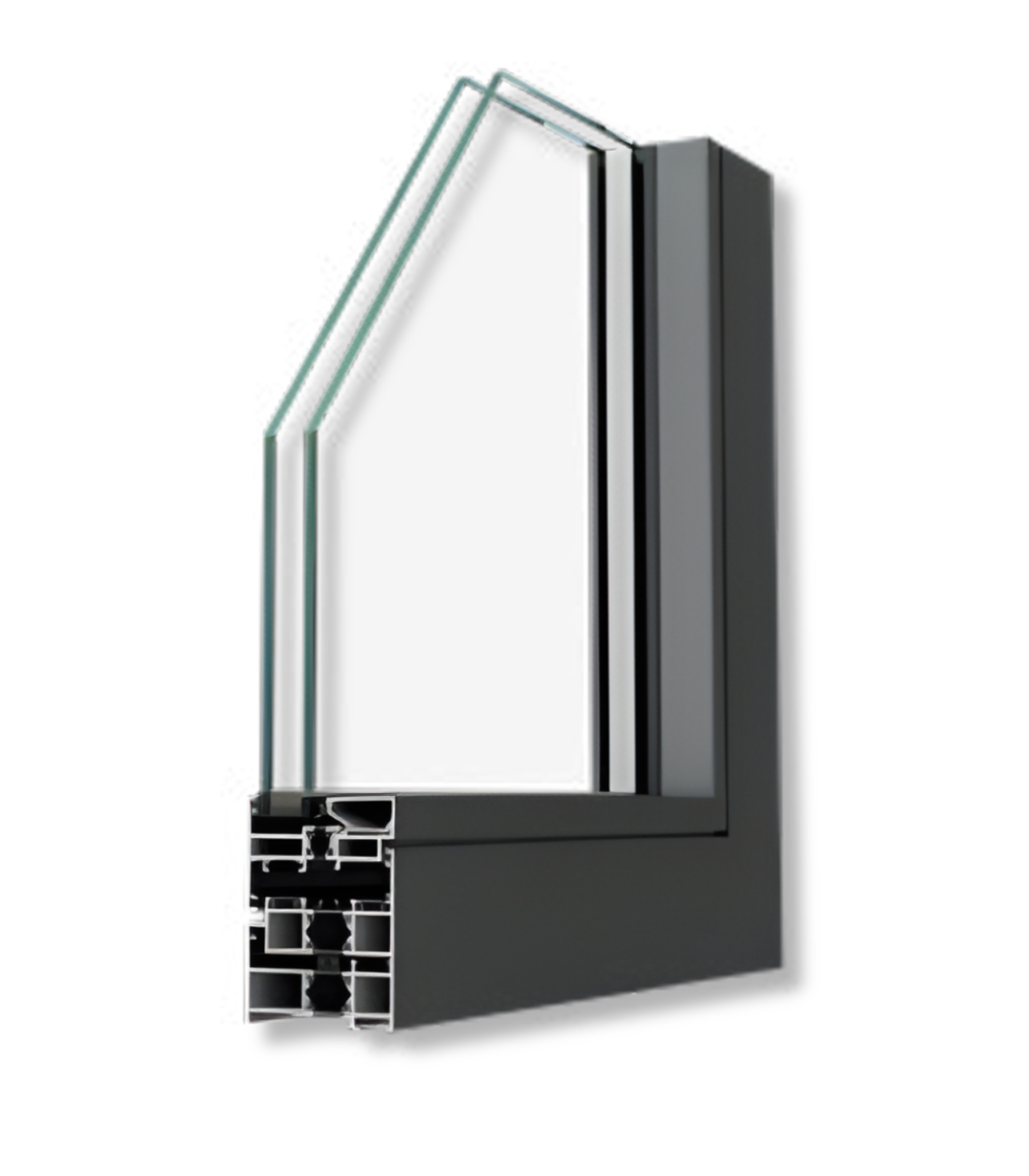

The frame itself is extruded aluminum with a wall thickness of 0.079 inches. That’s the kind of number most people never think about, but it’s the reason the sash doesn’t sag, twist, or bind after a few years of operation. The profile width comes in at 1.97 inches, which keeps the frame visually light and maximizes the glass area. That’s where the “ultra-narrow sightlines” idea comes from: you see more of your yard, your pool, or the preserve behind your house, and less of the frame.
Buyers choose this series when they’re replacing old single-pane aluminum windows, upgrading before selling, or building new and want something better than builder-grade. It fits ranch-style homes, contemporary builds, and courtyard-layout houses equally well. And because it’s aluminum rather than vinyl, it handles the South Florida sun without softening, fading, or flexing out of square.
Technical Specifications
- Frame material: Extruded aluminum with a 0.079-inch wall thickness for structural rigidity and long-term squareness.
- Profile width: 1.97 inches, keeping sightlines narrow and glass area maximized.
- Operation: Side-hinged casement with crank operation for full ventilation.
- Glass options: Clear, Frosted, Low-E, Tempered, Laminated. Laminated is the impact-rated option for storm protection.
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
- Screen options: Fixed Screen or Retractable Screen, so screens can be hidden when not needed.
- Sill options: Standard Sill or Low-Profile Sill for smooth interior transitions and accessible door-like openings.
- Energy performance: NFRC-rated with a thermal break separating interior and exterior frame surfaces.
- Installation standard: Installed by TruePane Windows & Doors to AAMA 2400/2410, including AAMA 812-compliant low-expansion foam at all perimeter joints.
- Ratings: Tested for airtightness, water penetration resistance, mist prevention, and sound attenuation.
Performance Features
Thermal Efficiency: The VLX 80 uses thermal break technology that separates the interior and exterior aluminum surfaces. In Royal Palm Beach, that break slows heat transfer through the frame itself, which is where aluminum windows traditionally lose energy. NFRC-rated performance figures are available per glass package.
Acoustic Performance: The combination of a rigid aluminum frame, quality weather seals, and laminated or insulated glass options reduces outside noise. On busier streets in Royal Palm Beach or lots near Southern Boulevard, owners notice the drop in road and lawn-equipment noise after switching from older single-pane frames.
Airtightness & Weather Seal: Casement windows close against the frame like a door closes against a jamb, which creates a tighter air seal than sliding windows. The VLX 80 uses compression seals that engage fully along all four sides when locked. Less air leakage means fewer drafts and less humid air creeping in during the rainy season.
Waterproofing: The frame design includes integrated drainage channels that direct water away from the interior. In Royal Palm Beach’s wet season, where an average afternoon storm can dump inches in an hour, that drainage matters. Combine that with the AAMA 812 foam seal on all perimeter joints during installation, and you get a solid defense against water intrusion.
Wind Resistance: The VLX 80 is wind-load rated for coastal and near-coastal Florida conditions. The laminated glass option adds impact resistance for storm season. In Royal Palm Beach, where wind-driven rain and debris are a seasonal reality, that rating is not a marketing bullet point. It’s why the window doesn’t flex, whistle, or leak during a strong storm band.
Security & Hardware: Aluminum casement frames are inherently harder to pry open than vinyl or older wood. The VLX 80 uses a multi-point locking mechanism that engages at top, bottom, and center. Combined with tempered or laminated glass options, it creates a physical barrier that simple latch-and-lock windows don’t offer.
Color & Glass Options
Premium Black and Pure White are the two most-requested finishes in Royal Palm Beach. Black frames have become the default choice for modern and transitional renovations, especially on white or light exteriors where they read as architectural accents. Pure White stays the safer choice for traditional Florida ranch or Mediterranean-style homes, especially when paired with a white interior for a seamless look.
Anodized Silver and Bronze lean slightly more commercial but work well on mid-century and contemporary pool homes. Champagne sits between silver and bronze, with a warmer cast that flatters beige and travertine exteriors. Teak Wood is a wood-grain finish, which gives you the look of wood without the maintenance, and is often chosen for coastal-inspired or Key West-style homes in the Royal Palm Beach area.
Glass choice depends on the room. Clear is the economical option. Frosted suits bathrooms and any window facing a side yard or close neighbor. Low-E is the energy pick, cutting solar heat gain substantially in west-facing rooms that get the harsh afternoon sun. Tempered satisfies code requirements near doors and low sill heights. Laminated is the option we recommend most in South Florida: it’s impact-rated, reduces sound, and blocks UV fading on furniture and floors.
Installation by TruePane Windows & Doors in Royal Palm Beach
Most window problems trace back to installation, not the product. The VLX 80 is engineered to perform, but if it isn’t set level, plumb, and square, the sash will bind, the seals won’t engage evenly, and the manufacturer’s warranty is effectively gone. That’s why ViewLux’s warranty structure is tied to installation standards, and why our team in Royal Palm Beach treats installation like the critical phase it is.
Our process starts with a pre-install inspection of the rough opening, checking for water damage, rot, and squareness before the new window goes in. If we find anything, we tell you before we proceed, not after. Then we set the window level and plumb with shims, never forcing the frame to conform to an out-of-square opening. All perimeter joints receive AAMA 812-compliant low-expansion foam sealant. That’s the step that separates a sealed installation from one that leaks around the frame. We finish with exterior flashing and trim per AAMA 2400/2410 installation standards, then run a water test across the sill and jamb intersection to confirm drainage works before we leave.
Royal Palm Beach brings its own considerations. High humidity and afternoon thunderstorms mean interior moisture management is as important as exterior sealing. The thermal break and sealed frame stop condensation from forming on interior aluminum surfaces. And while Royal Palm Beach doesn’t sit inside a coastal flood zone, South Florida wind requirements still apply, especially for new construction and large openings. We pull the proper permits where required, and our installations are inspected and passed.
We’re not a subcontracted crew from another county. We’re local, we’re licensed, and we stand behind our workmanship with a warranty that exists separate from the manufacturer’s product warranty.
Frequently Asked Questions - VLX 80 Casement Window
Most VLX 80 casement orders arrive in our Royal Palm Beach warehouse within 3 to 5 weeks, depending on glass package and finish. We’re direct with which means no distributor delays. Your quote will include an expected delivery window before you sign anything. Call (386) 251-6745 if you’re on a strict timeline, and we’ll confirm current production schedules before you commit.
The Low-E glass package on the VLX 80 is designed to meet or exceed the energy performance thresholds required for federal residential energy tax credits. The credit applies to the window cost and installation labor. We recommend confirming your specific glass package against your tax advisor’s guidance, but many Royal Palm Beach homeowners using this window with Low-E qualify. We include all product documentation needed for your records.
ViewLux provides a manufacturer’s warranty on the frame and glass, with coverage terms that vary by component. The critical point is that the warranty is only valid if the window is installed by an authorized partner using the manufacturer’s installation standards. TruePane Windows & Doors is an authorized ViewLux installation partner, so your product warranty remains fully intact when we handle the install. We also provide our own workmanship warranty on the installation. Call (386) 251-6745 and we’ll walk you through the exact warranty terms for the package you’re considering.
Yes. The VLX 80 is built to order, which means we measure the actual opening and order the window to fit, not the other way around. Custom sizing matters in Royal Palm Beach because homes here run the range from 1970s concrete block to new custom builds. We can accommodate non-standard rough openings, unusual proportions, and multiple-window combinations like twin and triple casement assemblies. Your free on-site measurement confirms the exact size before any order is placed.
Aluminum frames need less maintenance than wood or vinyl, but they still benefit from a simple routine: wash the frames with mild soap and water twice a year, avoid abrasive cleaners that will scratch the finish, and keep the sill track clear of sand and debris so drainage stays open. In Royal Palm Beach, salt air isn’t a big factor, but sunscreen, pool chemicals, and hard-water irrigation overspray can leave residue. The hardware needs occasional lubrication on the crank mechanism and hinge points, which takes about five minutes a year. No painting, no staining, no sealing.
Get a Quote - VLX 80 Casement Window in Royal Palm Beach
We’ll start with a free on-site measurement. You’ll get a written, line-item quote with exact pricing for the window, glass package, finish, and installation. No pressure, no change orders later, and no surprises. If you’re replacing one casement in Royal Palm Beach or doing the entire house, the process is the same. Call (386) 251-6745 to schedule your free measurement and get your project started.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Royal Palm Beach, FL.
