Geometric and shaped windows bring architectural character to a home, but in South Florida they carry a bigger job than just looking sharp. A triangular or hexagonal opening has to hold up to the same hurricane pressures as any other window, and that’s where most contractors get nervous. We don’t. TruePane Windows & Doors has installed custom impact-rated geometric windows in Royal Palm Beach for years, across PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines. Every custom configuration is fabricated to your exact opening dimensions and engineered for Florida High-Velocity Hurricane Zone conditions. Call (386) 251-6745 to talk through your project.

Call (386) 251-6745

Product Overview - Geometric & Shaped Windows

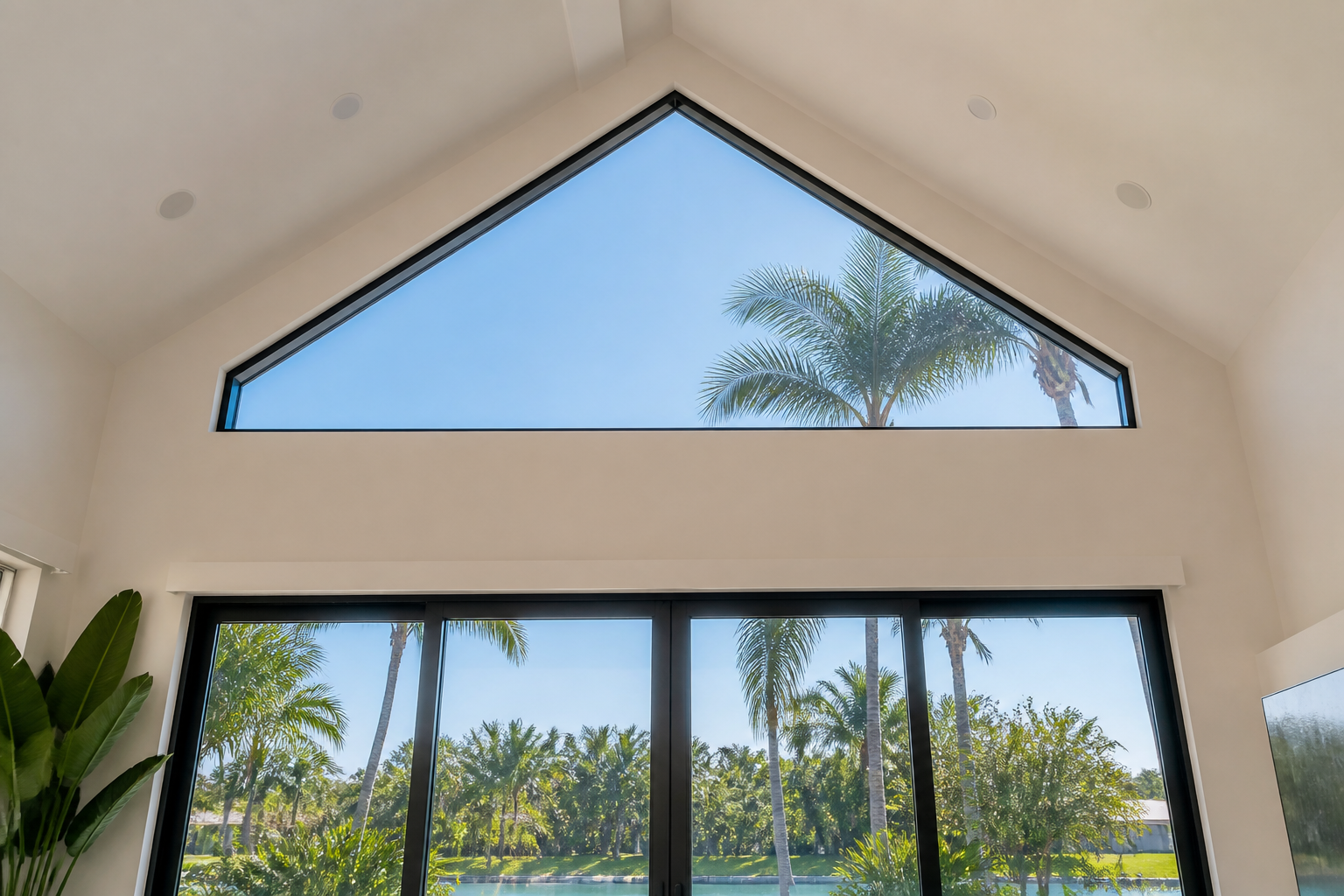

Triangular, hexagonal, octagonal, and curved impact-glass configurations. Custom-fabricated to your opening. That’s the short version. The longer one is that this product exists because Florida architecture refuses to be boring. Mediterranean facades in Royal Palm Beach use arch tops. Contemporary builds lean on clean octagons. Coastal-inspired designs put triangular transoms over doorways. All of those shapes require glass, and all of that glass has to survive wind-borne debris and pressure cycling.

What separates a properly engineered geometric window from a decorative afterthought is the frame. These units are built in aluminum or vinyl, custom-milled and welded to the exact angles and radii of your opening. The glass is laminated impact glass with a PVB interlayer, meaning if something hits it, the glass fractures but stays in the frame. Low-E and tinted options are available for heat control without changing the structural performance. Since every opening is unique, each window is fabricated to order, never pulled off a shelf. That’s the whole point of the product: architectural detail without sacrificing wind-zone protection.

Technical Specifications

Here’s what goes into every geometric and shaped window we order for Royal Palm Beach projects. Sizes are fully custom, so the real question is what your opening calls for.

• Frame materials: Aluminum or vinyl, depending on the shape, structural load, and finish you want.
• Maximum size: Custom fabricated to order. We measure the opening, the manufacturer builds to it.
• Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, clear glass.
• Finish options: White, almond, bronze, black, and tan. All finishes are applied for South Florida UV exposure.
• Configuration: Triangle, hexagon, octagon, pentagon, trapezoid, half-round, quarter-round, eyebrow, and custom radius shapes.
• Hardware and sealants: Matched to the frame profile and rated for the same pressure capacity as the glazing.

Hurricane & Compliance Performance

Laminated Impact Glass
We use laminated glass with a PVB (polyvinyl butyral) interlayer. Under impact, the outer lite may crack, but the interlayer holds the glass in the frame. That’s the single most important behavior in a hurricane window, because once the envelope is breached, pressure inside the house compounds the damage. This product is built so the envelope holds.

Miami-Dade NOA / Florida Product Approval
Every configuration carries either a Miami-Dade Notice of Acceptance or a Florida Product Approval number. These are issued per configuration and verifiable on your specific quote. No generic “hurricane rated” language. The actual approval numbers apply to the specific shape, size, and glass package you order. That’s what building inspectors in Palm Beach County want to see.

FBC / HVHZ Compliance
Engineered to Florida Building Code High-Velocity Hurricane Zone requirements. HVHZ is the strictest wind standard in the state, and Royal Palm Beach falls inside the wind-borne debris region where it applies. These windows are built for that requirement from the first drawing, not adapted to it later.

TAS 201 / 202 / 203 Testing Context
HVHZ-rated products are tested under a specific protocol family. TAS 201 covers large-missile impact, the test where a length of lumber is fired at the glass. TAS 202 covers cyclic wind-pressure loading, which simulates hurricane gusts pushing and pulling on the unit repeatedly. TAS 203 covers forced-entry resistance. These are the standards behind the NOA numbers, and they’re the reason this product qualifies where lesser windows fail.

Design Pressure for Your Wind Zone
Design pressures are matched to your specific wind zone, up to +/-100, never higher. We don’t upsell you a “+/-140” window because your house doesn’t need it. Conversely, if your opening calculates to +/-80, you’ll see that on the engineering. The point is the number on your quote is matched to the site, and we can walk you through where it comes from.

Energy Performance
Low-E and insulated glass options are available for energy performance without changing the impact rating. A shaped window on a west-facing gable in Royal Palm Beach will cook a room in August without the right glass. Low-E coatings cut solar heat gain while keeping visible light. Insulated units add thermal separation. The structural qualification stays the same.

Color & Glass Options

Five frame finishes: white, almond, bronze, black, and tan. In Royal Palm Beach, the choice usually follows the house. Mediterranean and Spanish-influenced exteriors pair well with almond or bronze, since those warmer tones echo the stucco palette common in neighborhoods like Las Palmas and Bella Terra. Black is the current favorite on contemporary elevations, especially as an exterior contrast against light walls. White does the most work on coastal-inspired homes where the window needs to disappear into a bright facade. Tan splits the difference for neutral interiors.

Glass is where the functional decisions happen. Clear laminated is the straightforward choice, maximum daylight, full impact rating. Tinted laminated cuts glare and heat in rooms that face south or west. Low-E insulated glass goes a step further, adding a thermal barrier that matters when the air conditioning runs ten months a year. All of it is still laminated, still impact-rated, still hold-the-glass-in-the-frame structural behavior.

Installation by TruePane Windows & Doors in Royal Palm Beach

A window’s NOA rating is only as good as the installation. The product is tested as an installed system, not a bare pane of glass. If the frame is set out of square, the glass will fail under cyclic pressure. If the perimeter seal is wrong, water finds its way in before the wind ever does. This is why we install every shaped window ourselves, never through a third party.

Our process starts with a pre-install inspection. We measure the rough opening, check the framing around it, and confirm the wind-zone calculation before we order anything. Once the unit arrives, we set it level, plumb, and square, which is the less glamorous half of flat work on a non-flat window. Any racking in the frame translates to stress in the glazing. We follow AAMA 2400/2410 practice for installation and close the perimeter with AAMA 812 low-expansion foam sealant before the trim goes on. Then we water-test, clean up, and leave you with the paperwork your permit reviewer needs. Royal Palm Beach sits in HVHZ jurisdiction, so permitting is part of the job. We know what the Village wants to see because we’ve filed for it before.

Frequently Asked Questions - Geometric & Shaped Windows

Get a Quote - Geometric & Shaped Windows in Royal Palm Beach

The best time to bring us in is before the rough opening is finished. If the opening already exists, that works too. Either way, we’ll measure, engineer, and price it precisely. Call (386) 251-6745 to schedule a free on-site measurement and get a written quote for your shaped window project.
