VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in Royal Palm Beach, FL | TruePane Windows & Doors

The VLX 150 Heavy-Duty Sliding Door is a large-span aluminum slider built for openings that most standard doors simply can’t handle. We’re talking spans up to 24 feet wide, multi-track configurations, and stainless hardware that doesn’t flex under daily use. TruePane Windows & Doors is an authorized ViewLux installation partner in Royal Palm Beach, FL, which means you get the product warranty honored and the installation done to AAMA standards. If you’re planning a big opening between your living room and lanai, or replacing a dated patio slider with something that actually glides, call (386) 251-6745 for a free on-site measurement.

Call (386) 251-6745

Product Overview - VLX 150 Heavy-Duty Sliding Door

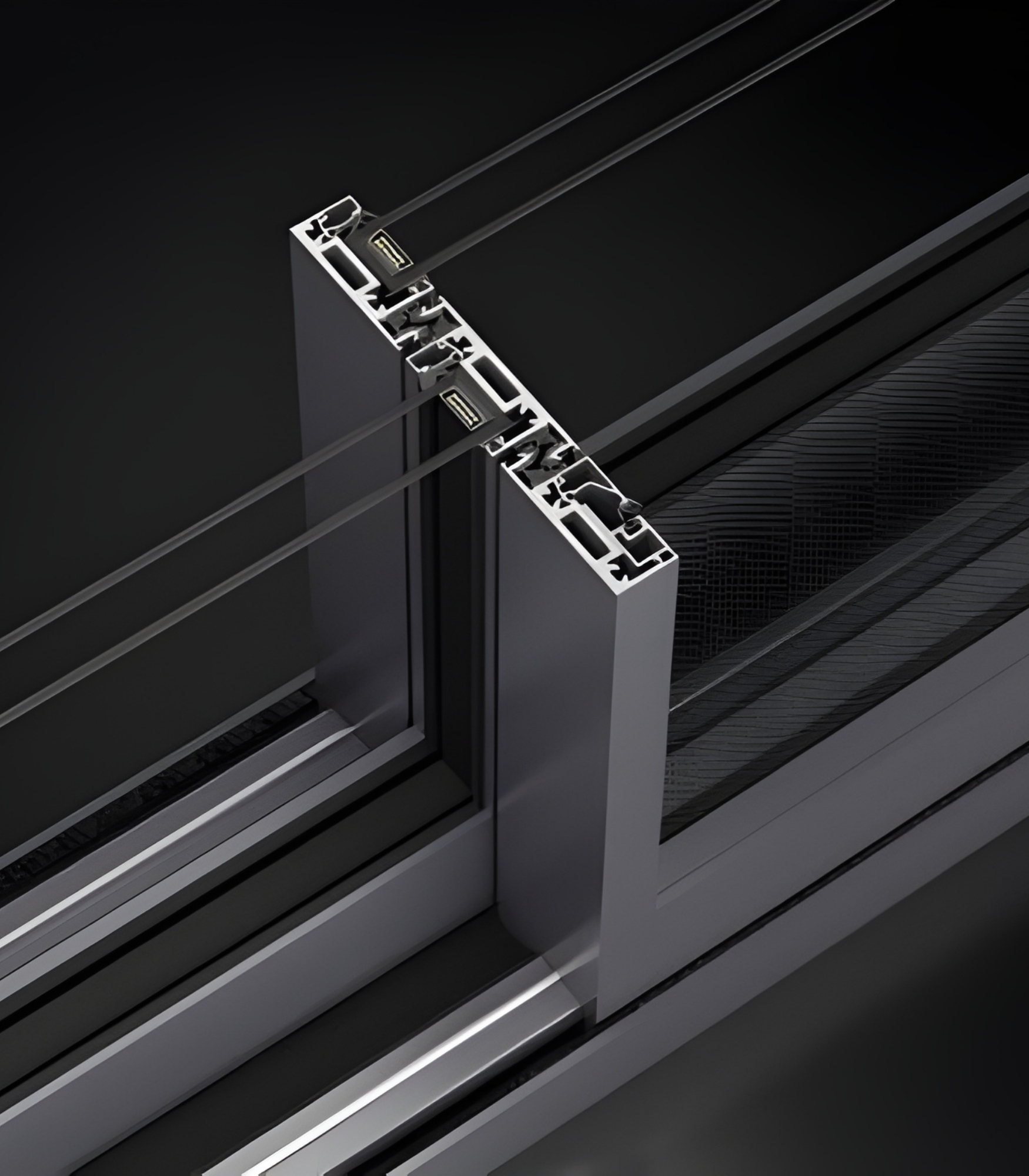

The VLX 150 was engineered around one idea: strength at scale. ViewLux built this series for architects, builders, and homeowners in Royal Palm Beach who want wall-to-wall glass without a wall-to-wall headache. The frame profile measures 2.95 inches wide with a wall thickness of 0.118 inches, which is notably heavier than the aluminum you’ll find in budget sliding doors at the big-box stores. That mass matters when you’re dealing with a 24-foot span and Florida wind loads. The door doesn’t sag, doesn’t rack, and doesn’t develop that frustrating mid-track hang-up after a few seasons.

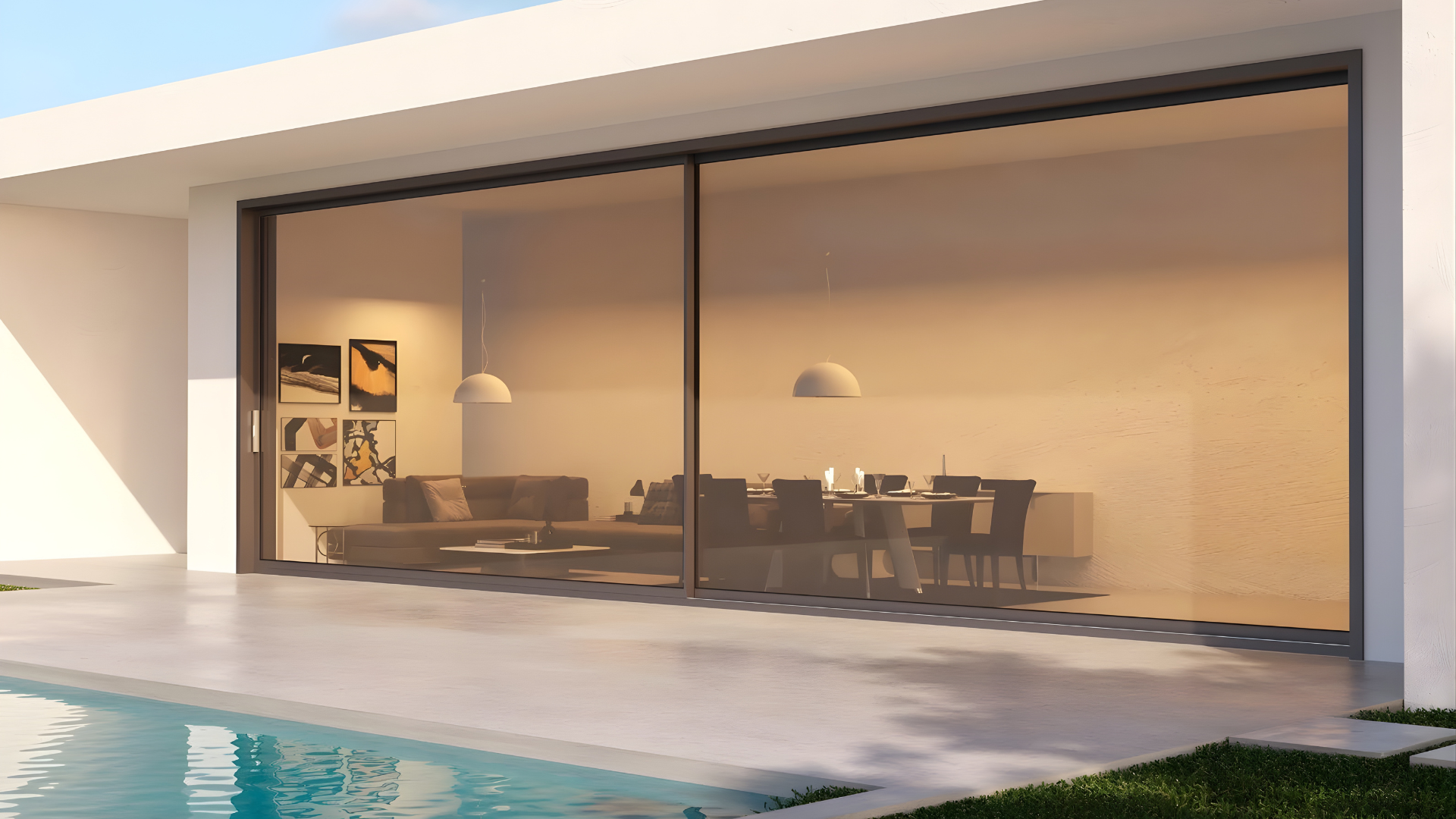

Where does this door fit? Think lakeside homes in The Acreage, modern builds in Madison Green, or renovations in La Mancha where the original 1970s slider is finally giving up. The VLX 150 works as a 2-track, 3-track, or 4-track configuration, so you can spec it as a simple two-panel slider, a three-panel pocket slider, or a full four-panel stacking wall that opens an entire corner of the house. The stainless steel hardware is what separates this from lighter systems: rollers are built for the weight they carry, and the lock mechanism engages with a solid, reassuring throw. If you’ve ever fought a sliding door that you had to lift to move, you’ll understand why this matters.

TruePane Windows & Doors recommends the VLX 150 for Royal Palm Beach homeowners who want a door that feels substantial the first time they slide it, and still feels that way ten years later. It’s an investment-grade product, not a replacement-grade product.

Technical Specifications

• Frame wall thickness: 0.118 inches, heavy-gauge aluminum extrusion
• Profile width: 2.95 inches for a clean, architectural sightline
• Maximum span: Up to 24 feet wide, depending on configuration

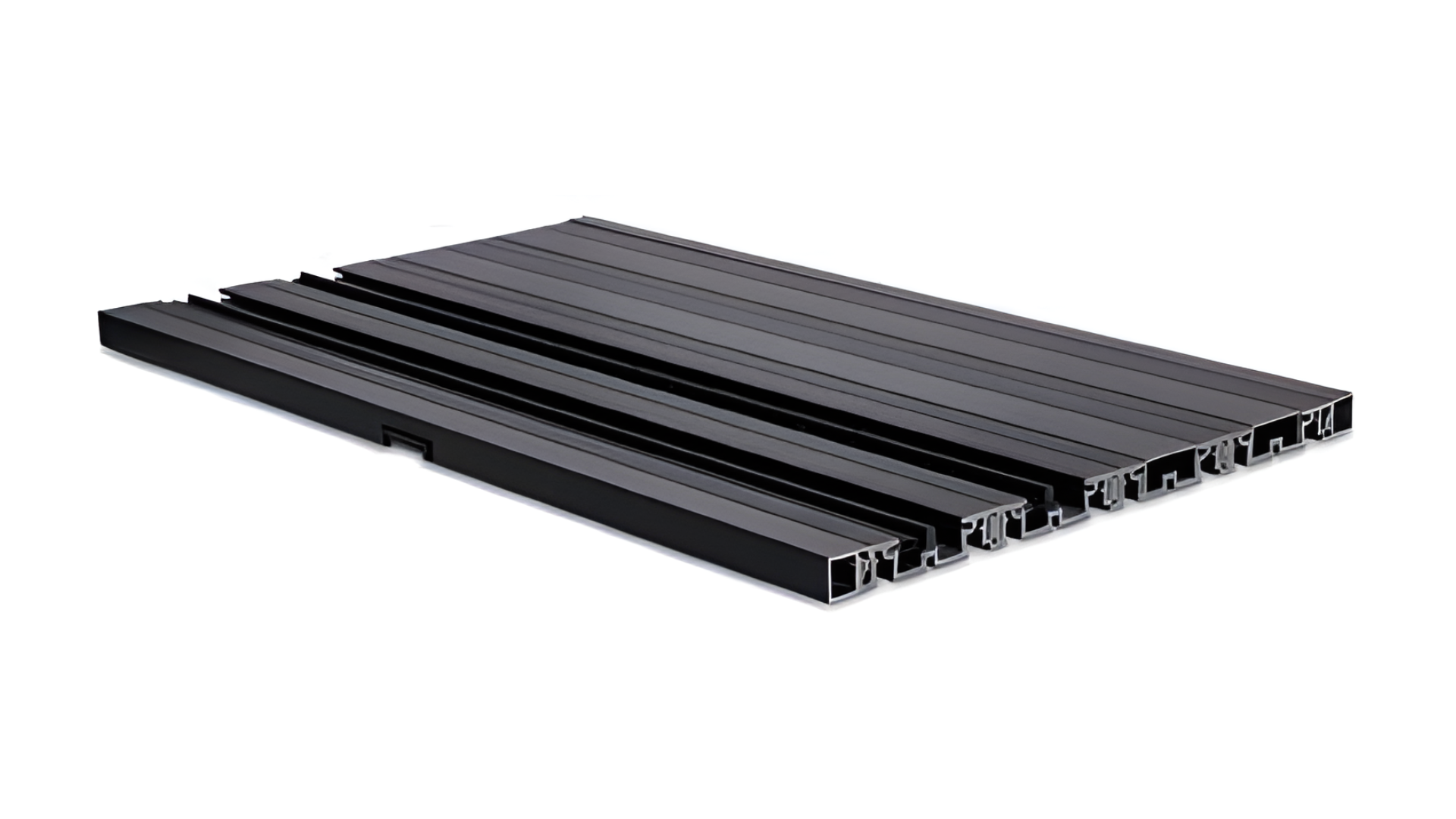

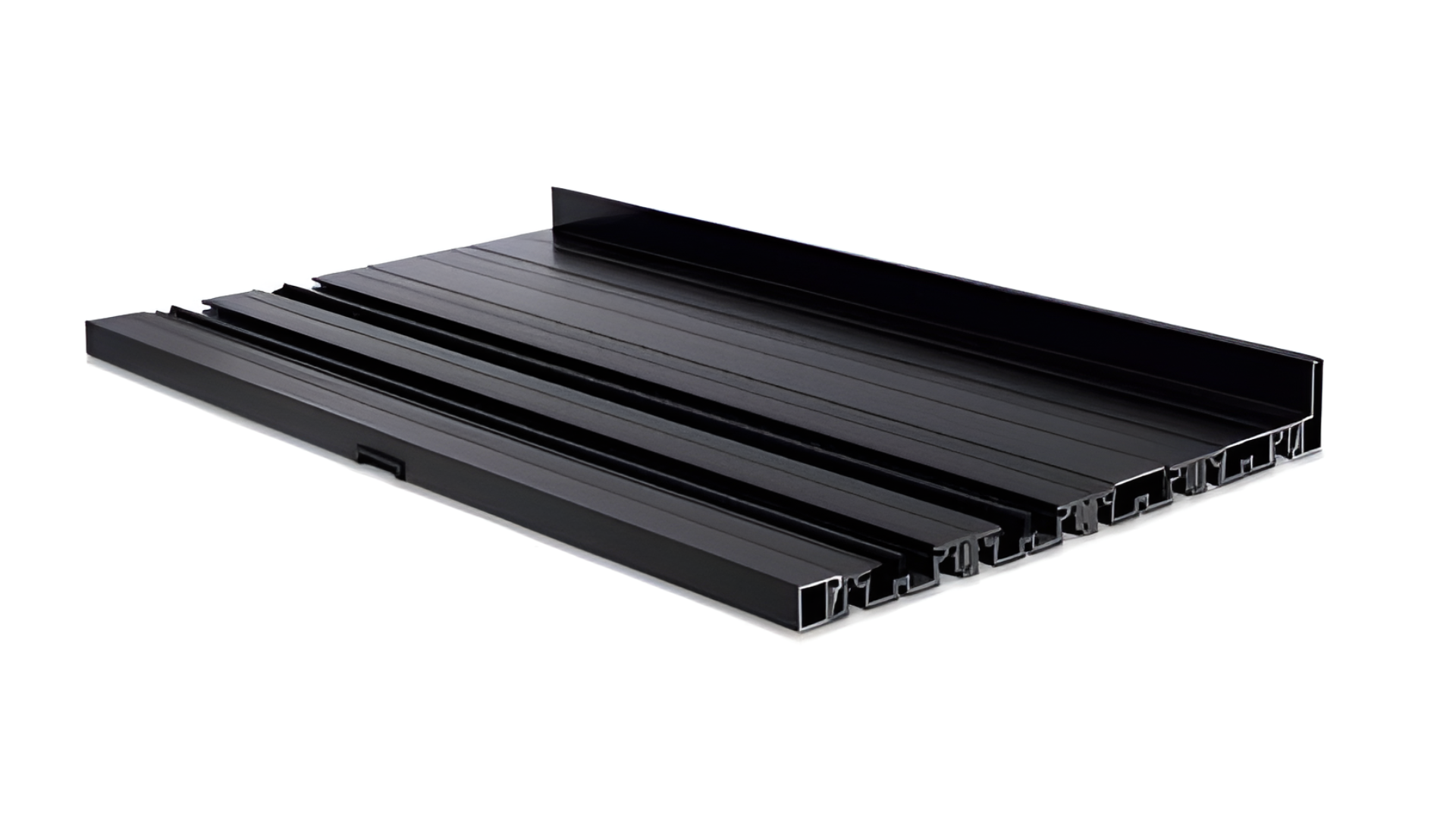

• Track configurations: 2-track, 3-track, and 4-track layouts
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or sliding screen
• Hardware: Stainless steel rollers, track, and locking components
• Performance: NFRC-rated thermal break, AAMA 2400/2410 installation standard, AAMA 812 perimeter sealant compliance, impact-rated laminated glass available

Performance Features

Thermal Efficiency

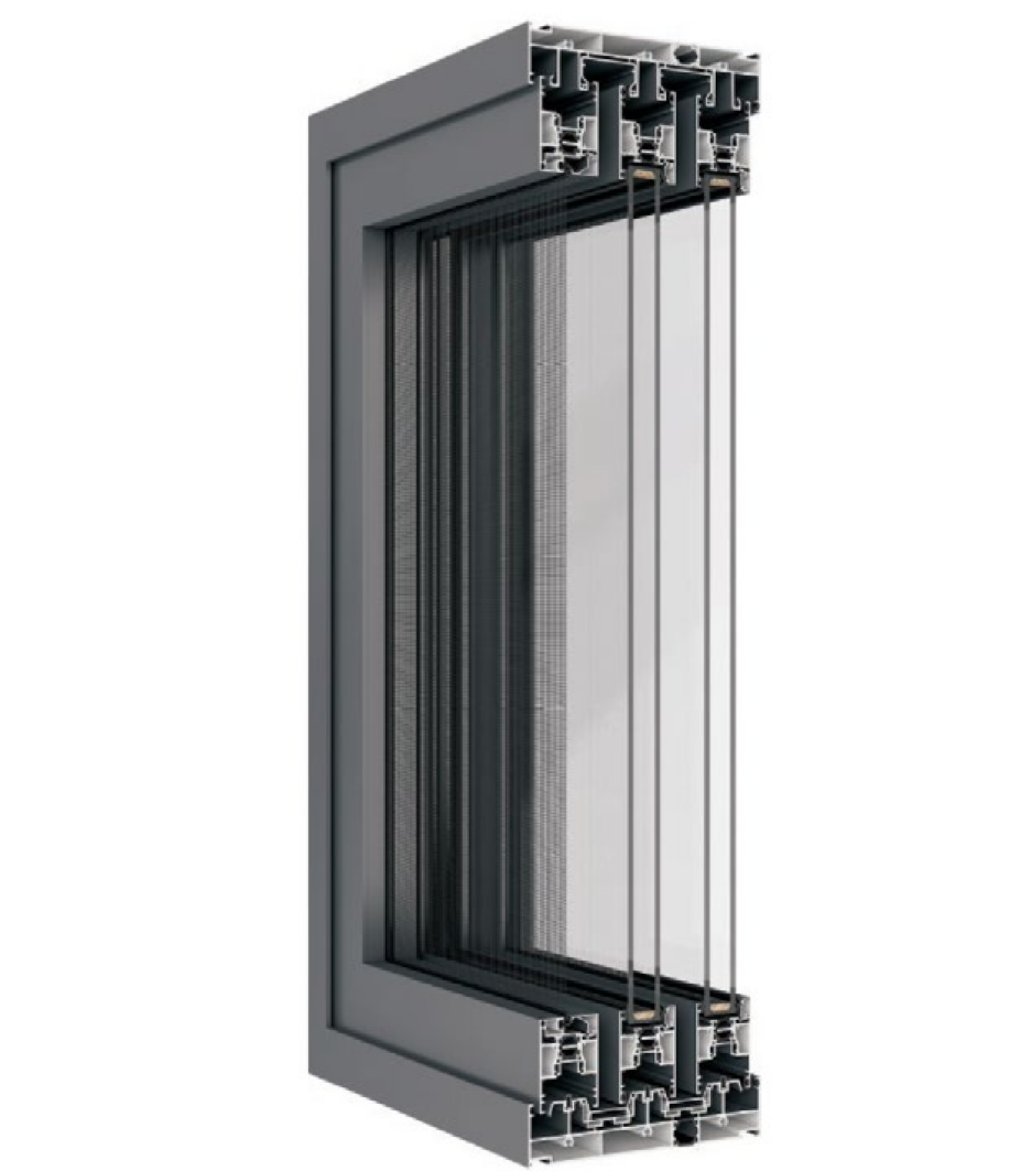

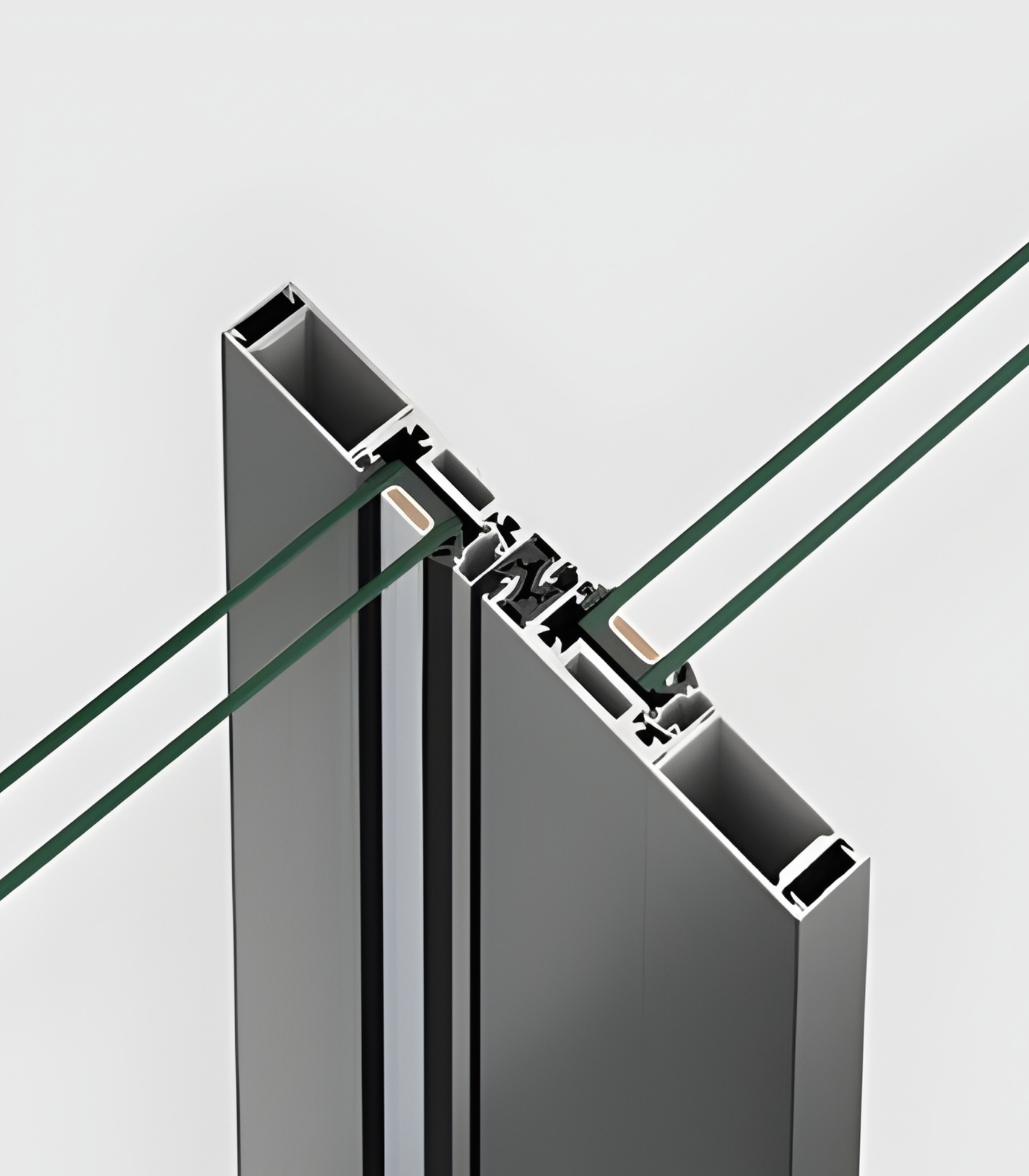

The VLX 150 uses a true thermal break in the frame, which means the inside aluminum is physically separated from the outside aluminum. That’s how you get an NFRC-rated performance number instead of a guess. In Royal Palm Beach, where the sun loads the west side of your house from about 2 PM to sunset, this is the difference between a door you can stand next to and a door that radiates heat. Pair it with Low-E glass and the solar gain drops noticeably.

Acoustic Performance
The heavier frame and laminated glass option make the VLX 150 measurably quieter than standard sliders. That’s not marketing copy; it’s mass. A heavier extrusion transmits less vibration, and laminated glass interrupts sound transmission at a different frequency than single-pane annealed glass. If you live near Okeechobee Boulevard or hear lawn equipment from your neighbors every Saturday, this matters more than you’d think.

Airtightness & Weather Seal

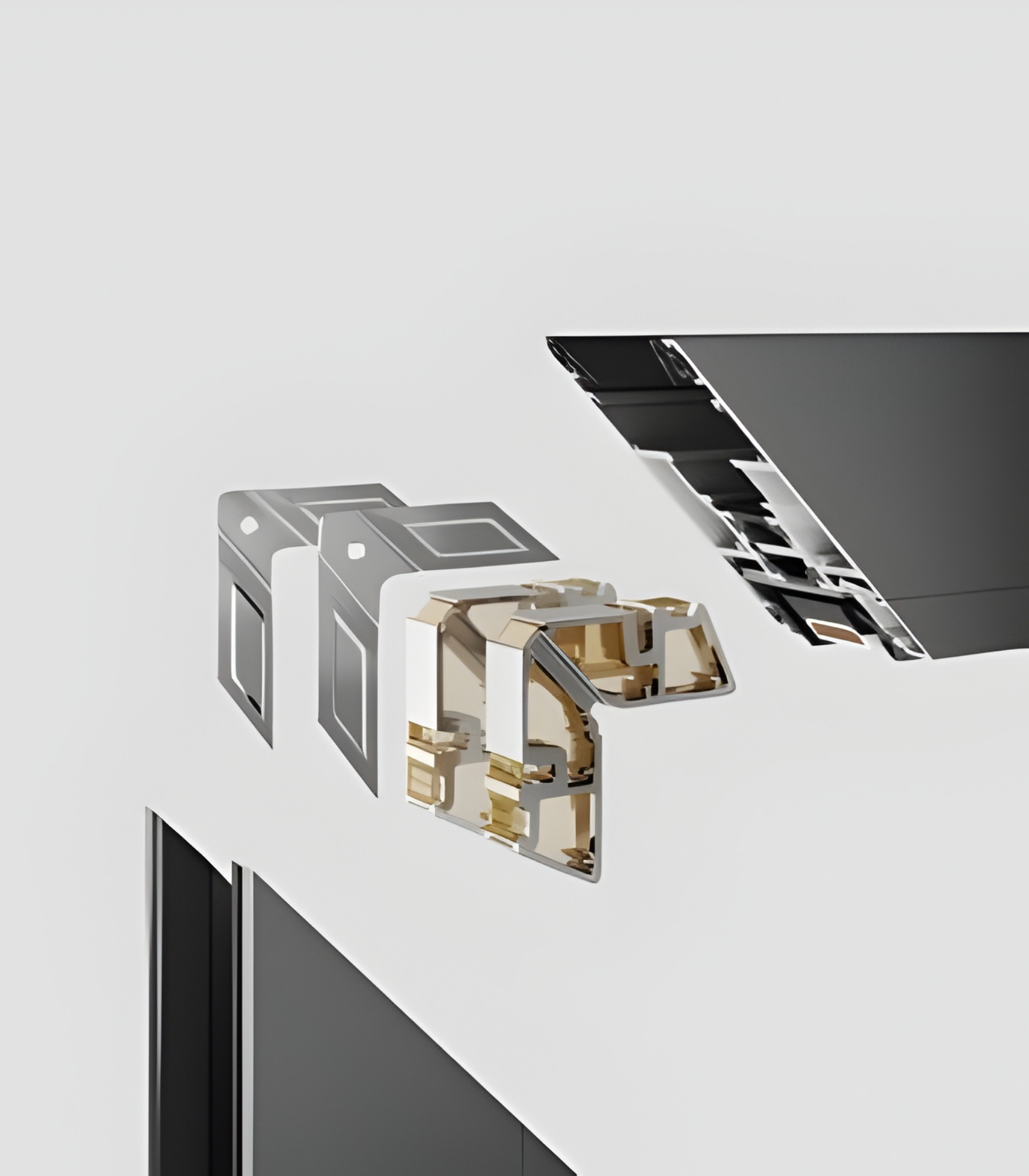

Every perimeter joint on the VLX 150 installation gets sealed with AAMA 812-compliant low-expansion foam. That’s the same standard used on commercial curtain-wall systems. The door’s weatherstripping is a compression-fit design rather than a friction-fit design, so the seal stays engaged as the door moves. Air leaks in Royal Palm Beach aren’t just an energy problem; they’re a moisture problem during the August afternoon storms.

Waterproofing

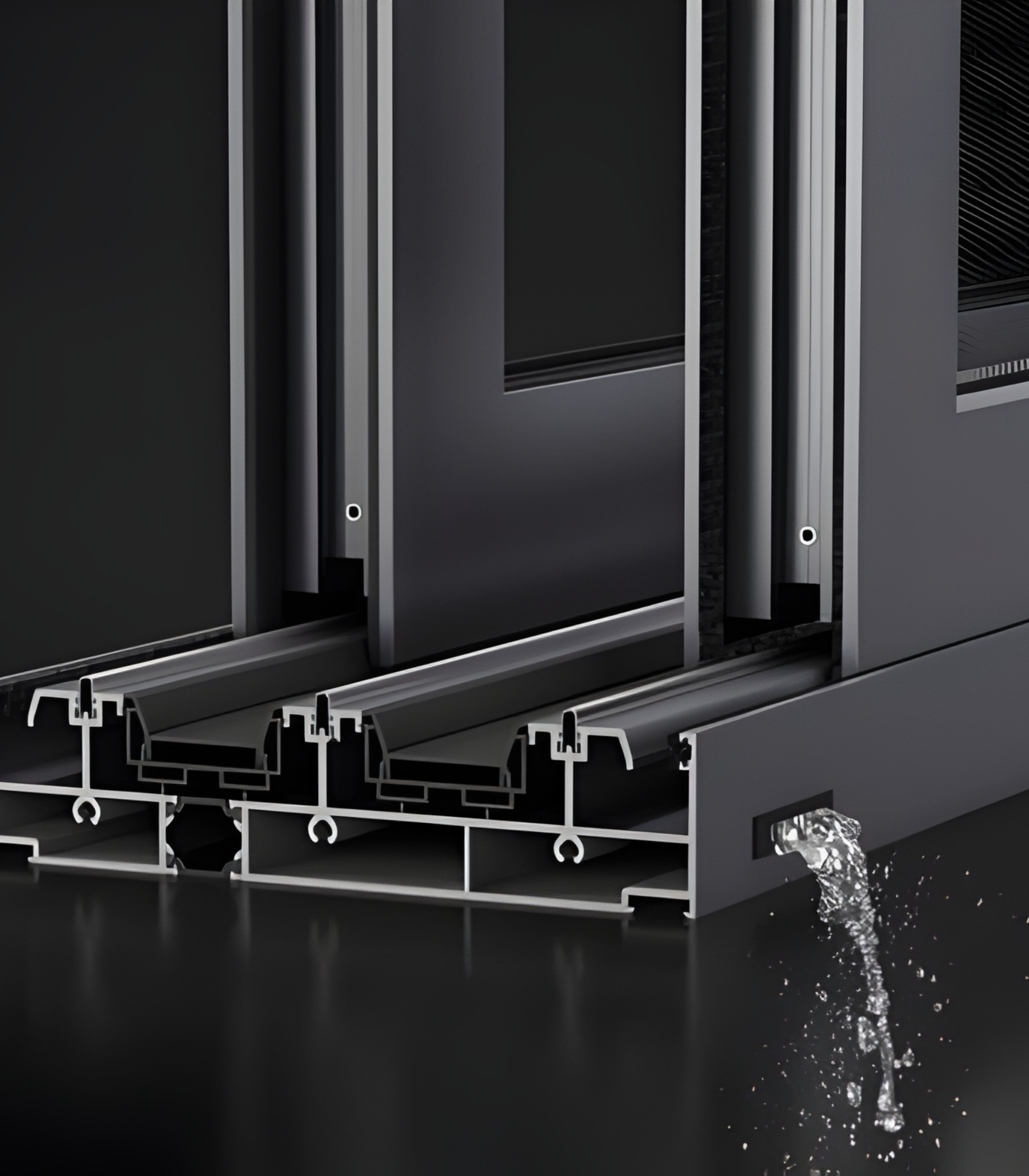

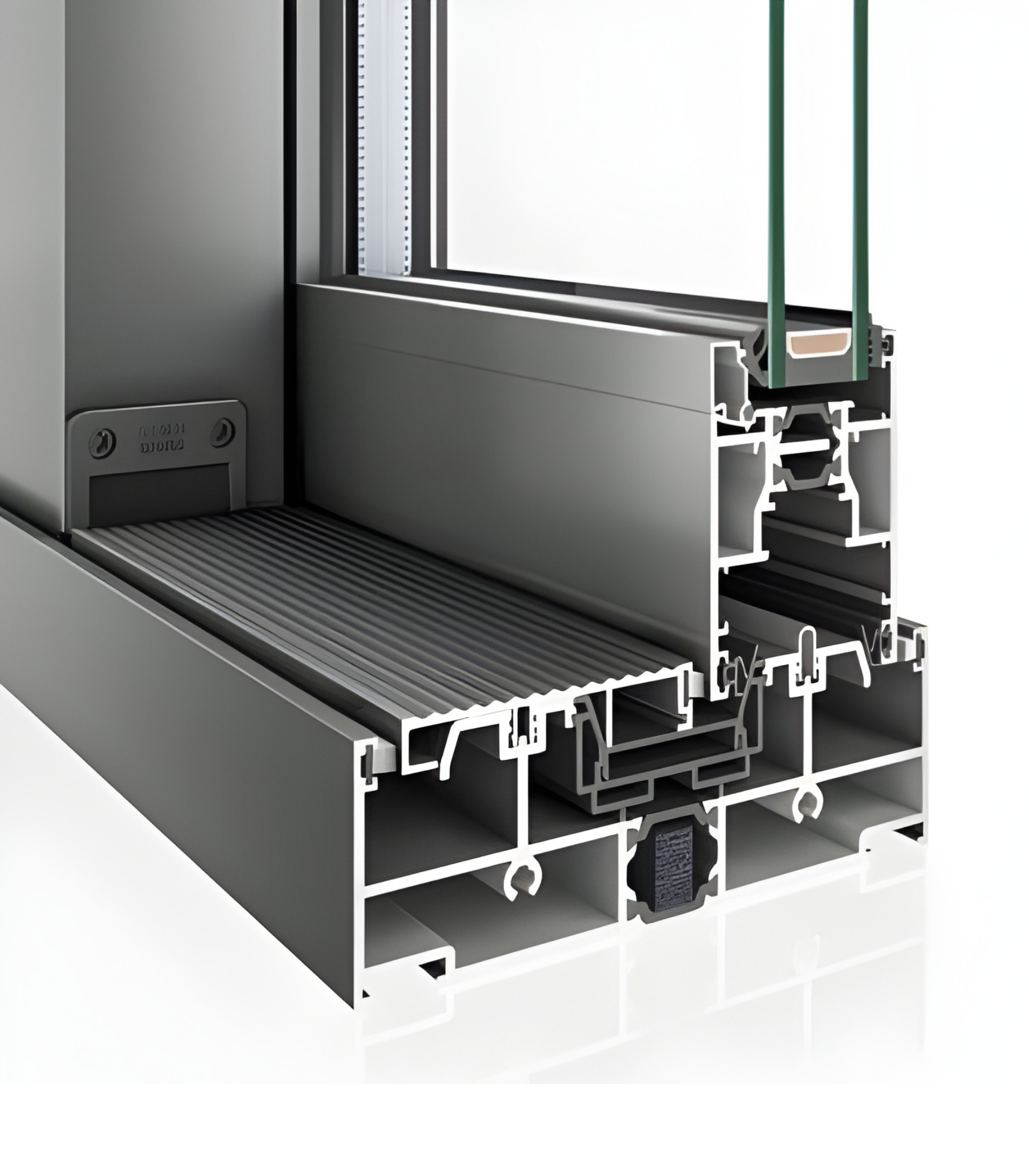

Florida rain doesn’t fall; it hits sideways. The VLX 150’s sill design is built with internal weep channels that drain water out and away instead of trapping it against the frame or seeping into the threshold. Combined with the AAMA 812 perimeter seal that TruePane Windows & Doors applies on every install, this door is set up for the kind of driving rain we get in Royal Palm Beach during hurricane season.

Wind Resistance
The VLX 150 is wind-load rated for local climate requirements, and we specify the impact-rated laminated glass option for most of our Royal Palm Beach installations. That matters for two reasons: building code, and the reality of living in a coastal county where the wind loads are higher than inland Florida. The 0.118-inch wall thickness is a big part of why this door qualifies where thinner frames don’t.

Security & Hardware
Stainless steel is the unsung hero of this door. The rollers, the track, the lock assembly: all stainless. No chrome plating to flake off, no zinc castings that get brittle. The lock point engages positively, and on multi-panel configurations it’s a multipoint system. Sliding doors have long been a weak point for home security; the VLX 150 is built to change that equation.

Color & Glass Options

The VLX 150 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and a Teak Wood finish that reads as a warm metallic rather than a wood-look sticker. Premium Black is the most common choice we install in Royal Palm Beach right now, particularly on newer construction and homes leaning modern. Pure White suits the classic Florida Mediterranean-style homes around Royal Palm Beach Village. Bronze and Champagne are understated options that pair well with existing bronze window frames, and Teak Wood bridges the gap if you want a hint of warmth without committing to a full black or white statement.

Glass selection depends on what the door is doing. Clear tempered is fine for a north-facing slider with minimal thermal stress. Low-E is the default choice for most Royal Palm Beach installations; it cuts the heat transfer without meaningfully changing the view. Laminated is the impact-rated option we recommend for wind protection and acoustic damping. Gray Tint and Black Tint are aesthetic choices that also cut glare on deep west-facing exposures.

Installation by TruePane Windows & Doors in Royal Palm Beach

Installation is where most sliding door failures begin. The best door on the market won’t slide properly if it’s set out of square, shimmed wrong, or sealed with whatever foam was on sale at the hardware store. ViewLux warranties the VLX 150 for manufacturing defects, but that warranty is void if the door is not installed correctly. This is why TruePane Windows & Doors handles every install in-house in Royal Palm Beach, with no subcontracting.

Our process starts with a pre-install inspection. We measure the opening ourselves, check the floor for level and deflection, and verify the structural header above the opening before we order the door. A 24-foot span on a 3-track configuration carries real weight; the header needs to be right. If the structure is insufficient, we tell you before we order anything. That’s a conversation most sales-first companies never have.

Installation follows the AAMA 2400/2410 standard. We set the frame level, plumb, and square using a laser level rather than a bubble level; at 24 feet, a half-degree of error becomes a noticeable slide resistance. We foam every perimeter joint with AAMA 812-compliant low-expansion sealant, then trim and tool the foam for clean lines. The interior and exterior are sealed, flashed, and finished to shed water away from the frame. Before we leave, we run a water test on the sill and outdoor seal, and we cycle the door through its full travel at least a dozen times to confirm it rolls smoothly from end to end.

Royal Palm Beach has its own considerations. The humidity means proper perimeter sealing is not optional; it’s the difference between a dry interior and mold behind your baseboard. The village’s construction requirements call for wind-load compliance, and most of our installations here include impact-rated laminated glass. We’re local, so we know what inspectors look for, and we build our installations to pass the first time. Call (386) 251-6745 to schedule a free consultation.

Frequently Asked Questions - VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door?
Lead time typically runs 4 to 6 weeks from final measurement and order approval, depending on the glass package and track configuration selected. Custom color finishes like Champagne or Teak Wood can add a week. We confirm the timeline in writing before you sign. Call (386) 251-6745 for a current lead time estimate.

Does the VLX 150 qualify for energy tax credits?
The VLX 150 can qualify for energy-efficiency incentives when configured with Low-E glass and a thermal break, but eligibility depends on the exact NFRC ratings for your chosen configuration and the current federal and state programs in effect at the time of purchase. We supply the NFRC documentation you need to file. Call (386) 251-6745 and we’ll walk through your configuration options.

What warranty comes with the Heavy-Duty Sliding Door?
ViewLux covers the VLX 150 frame and hardware against manufacturing defects under a standard manufacturer warranty, and TruePane Windows & Doors backs our installation with a workmanship warranty in Royal Palm Beach. The manufacturer warranty remains valid only when installation is completed per AAMA standards by an authorized partner, which we are. Call (386) 251-6745 for the exact warranty terms on your specific order.

Can I customize the size of the VLX 150?
The VLX 150 is built to order, not pulled off a shelf. Panel heights and widths are fabricated to your opening within the maximum 24-foot span. That’s the beauty of this series: you’re not limited to standard door sizes. We measure precisely and order exactly what your Royal Palm Beach home needs. Call (386) 251-6745 to schedule a measurement.

How do I maintain aluminum frames on a sliding door in Florida?
Aluminum frames in Royal Palm Beach need surprisingly little maintenance: wipe the track clean every couple of months, use a dry silicone lubricant on the rollers once a year, and wash the frame with mild soap and water. Avoid ammonia-based cleaners that can dull the finish over time. The stainless hardware resists corrosion from humidity and salt air. If you notice any change in how the door slides, call us before it becomes a bigger issue.

Get a Quote - VLX 150 Heavy-Duty Sliding Door in Royal Palm Beach

If you’re considering the VLX 150 for your home, the next step is a free on-site measurement in Royal Palm Beach. We’ll assess the opening, discuss track and glass options, and give you a written line-item quote with fixed pricing. No surprise change orders, no pressure. Call (386) 251-6745 today to start your project. The estimate is free, and you’ll know exactly what the door costs installed.

Written by the team at TruePane Windows & Doors, an authorized ViewLux installation partner serving Royal Palm Beach, FL.
