AfterVLX 138 Panoramic Sliding Door in Royal Palm Beach, FL | TruePane Windows & Doors

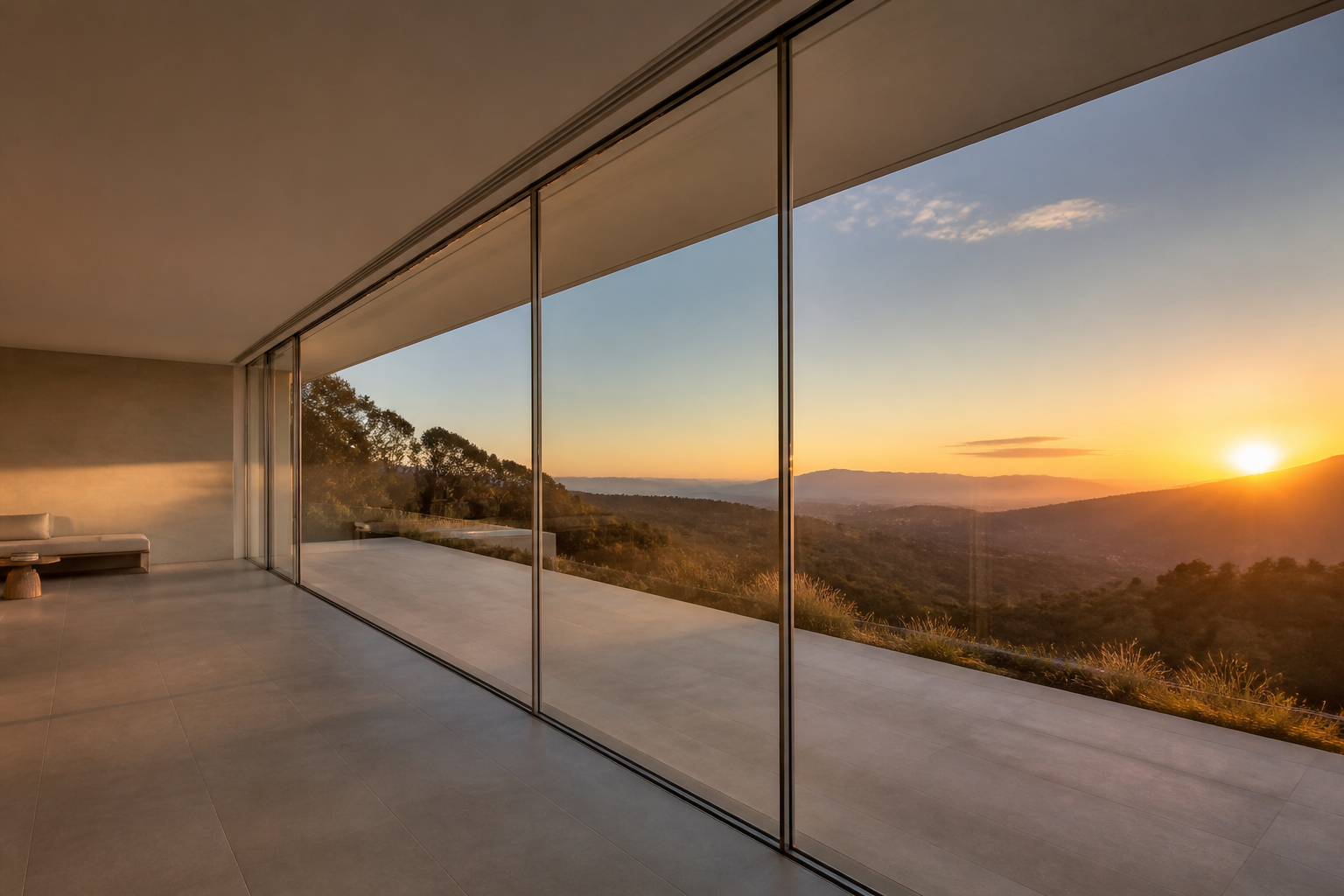

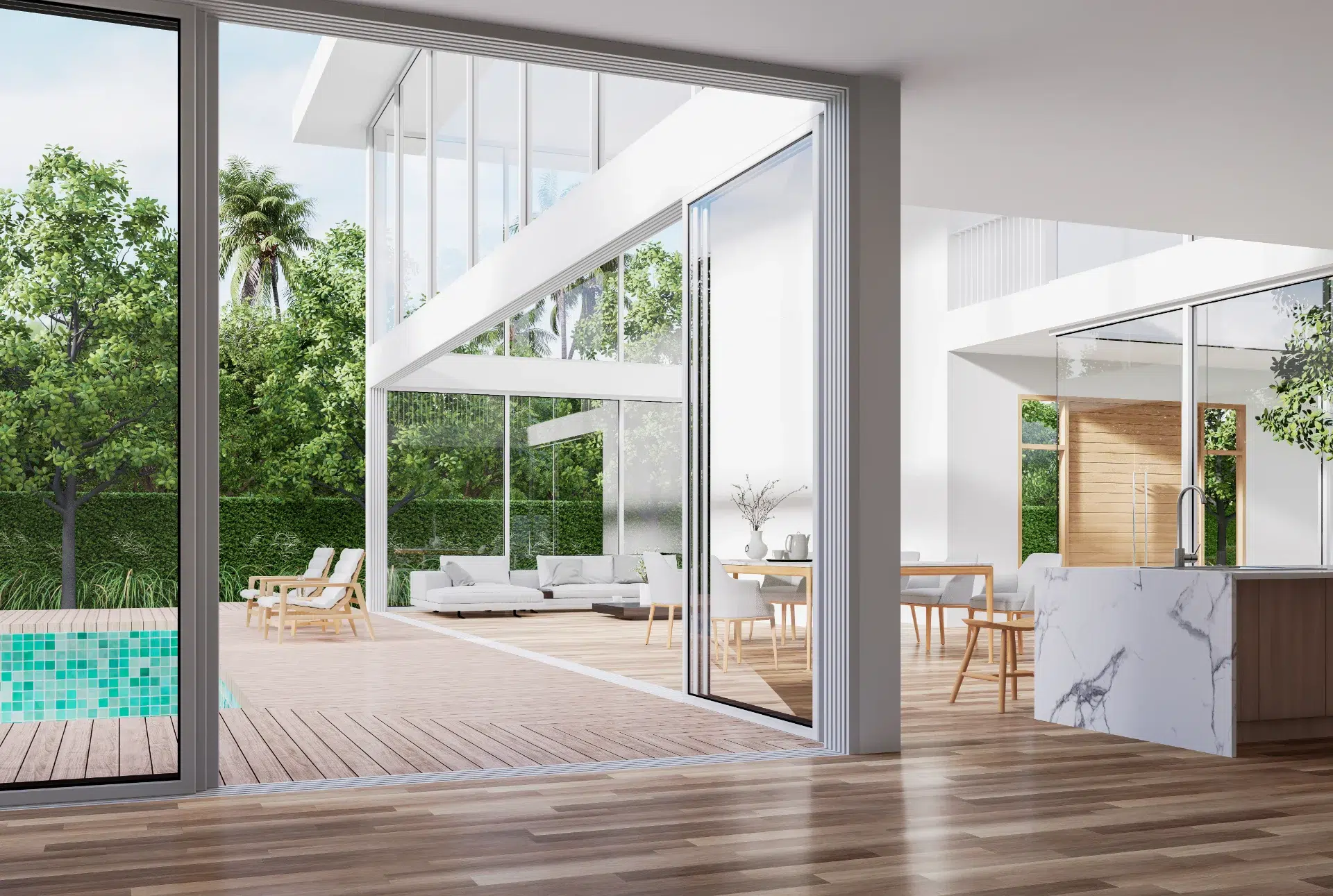

The VLX 138 Panoramic Sliding Door is a large-span aluminum slider built for homeowners in Royal Palm Beach who want the wall between indoors and outdoors to disappear. This is the door you choose when you want a 20-foot opening that glides open with two fingers, holds its alignment for years, and frames your pool, patio, or lake view without thick sightlines chopping it up. TruePane Windows & Doors is an authorized ViewLux installation partner in Royal Palm Beach, which means you’re getting the real product, installed by a crew that does this specific door week in and week out. Call (386) 251-6745 to talk through your project.
Product Overview - VLX 138 Panoramic Sliding Door
The VLX 138 gets its name from its 0.138-inch wall thickness, a gauge that lets ViewLux engineer longer spans without the panel sag you see in thinner extruded sliders. The profile sits at 1.535 inches wide, which is slim enough to read as contemporary but deep enough to house the stainless bearing rollers that make this door feel almost weightless when it moves. Buyers choose this series when they’re planning a great room that opens to a lanai, a primary suite with a sunrise view, or a dining room that spills onto a covered terrace in Royal Palm Beach. The appeal is straightforward: expansive uninterrupted views, ultra-smooth glide on stainless bearings, and a frame that does not twist or bind five years after install. ViewLux builds these doors for the kind of humidity, afternoon downpours, and wind events we live with in South Florida, and TruePane installs them against AAMA 2400/2410 so the structural and weather performance actually holds up. This is not a door you gamble on with a generalist. It’s a precision product, and the installation is half the product.
Technical Specifications
Here’s the VLX 138 at a glance, with the numbers reframed the way we talk about them on a job site in Royal Palm Beach:
- Wall thickness: 0.138 inches, the heavier extrusion that allows those big clear openings.
- Profile width: 1.535 inches, slim sightlines without sacrificing roller housing depth.
- Maximum span: Up to 36 feet wide, depending on track count and panel weight.
- Track configurations: 2-Track, 3-Track, and 4-Track layouts for different stacking and opening widths.
- Glass types: Clear, Low-E, Frosted, Obscure, Black Tint, and Gray Tint, all available with impact-rated laminated construction where code requires it.
- Finish colors: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
- Screen options: Retractable screen or a sliding screen panel.

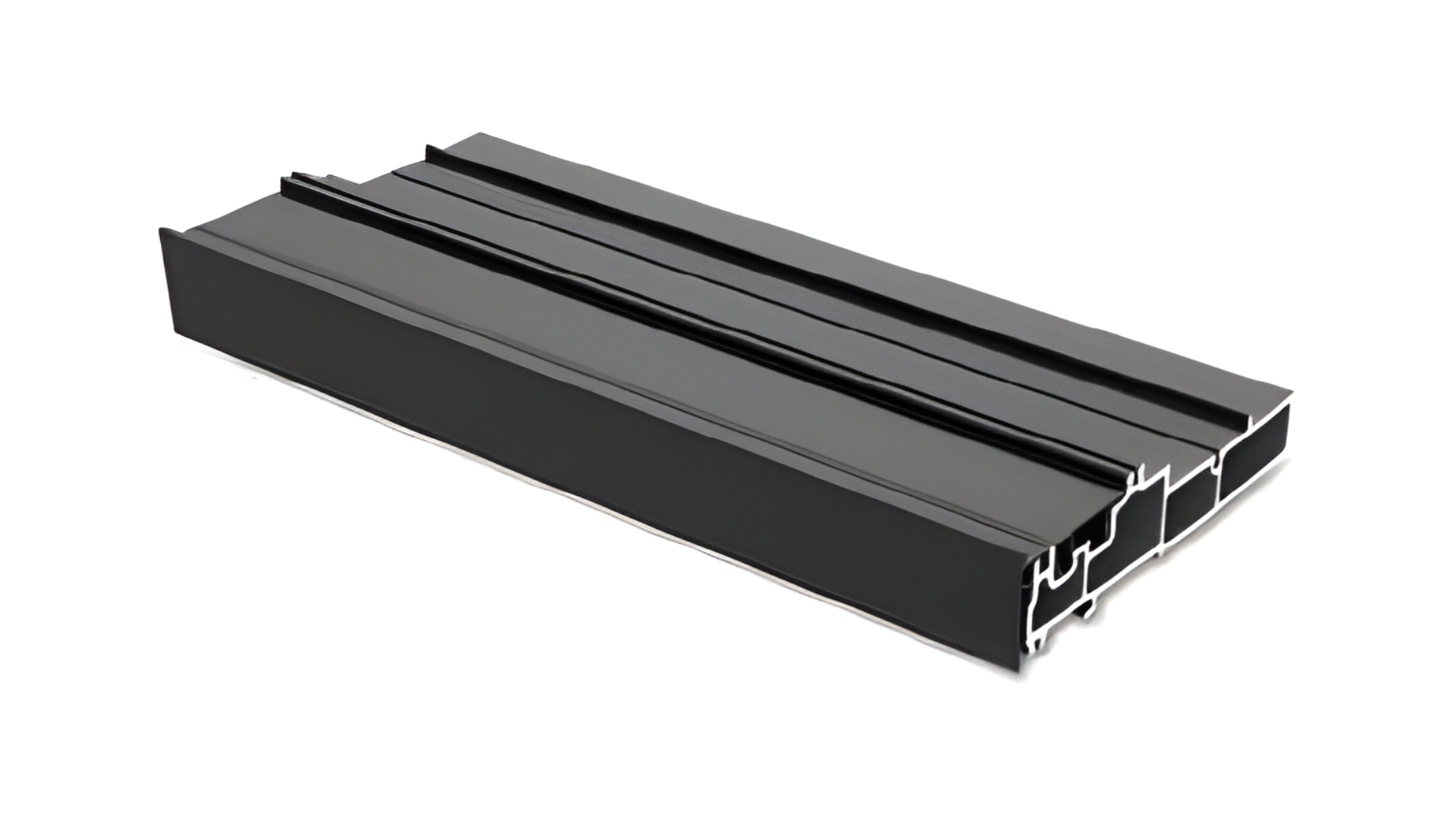

- Sill options: Flush sill, low-profile sill, or recessed sill for a fully seamless interior-to-exterior floor plane.
Performance Features
Thermal Efficiency

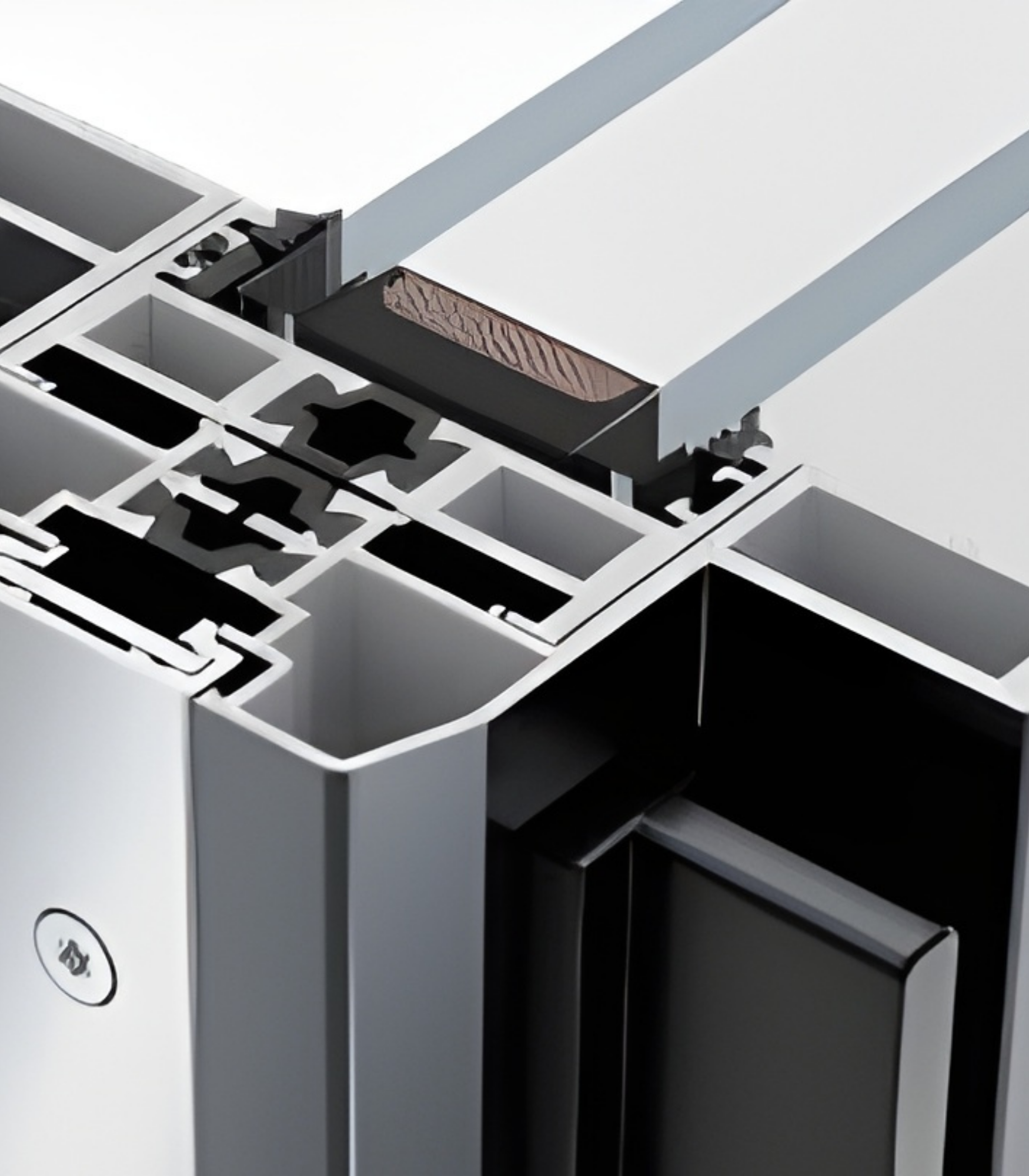

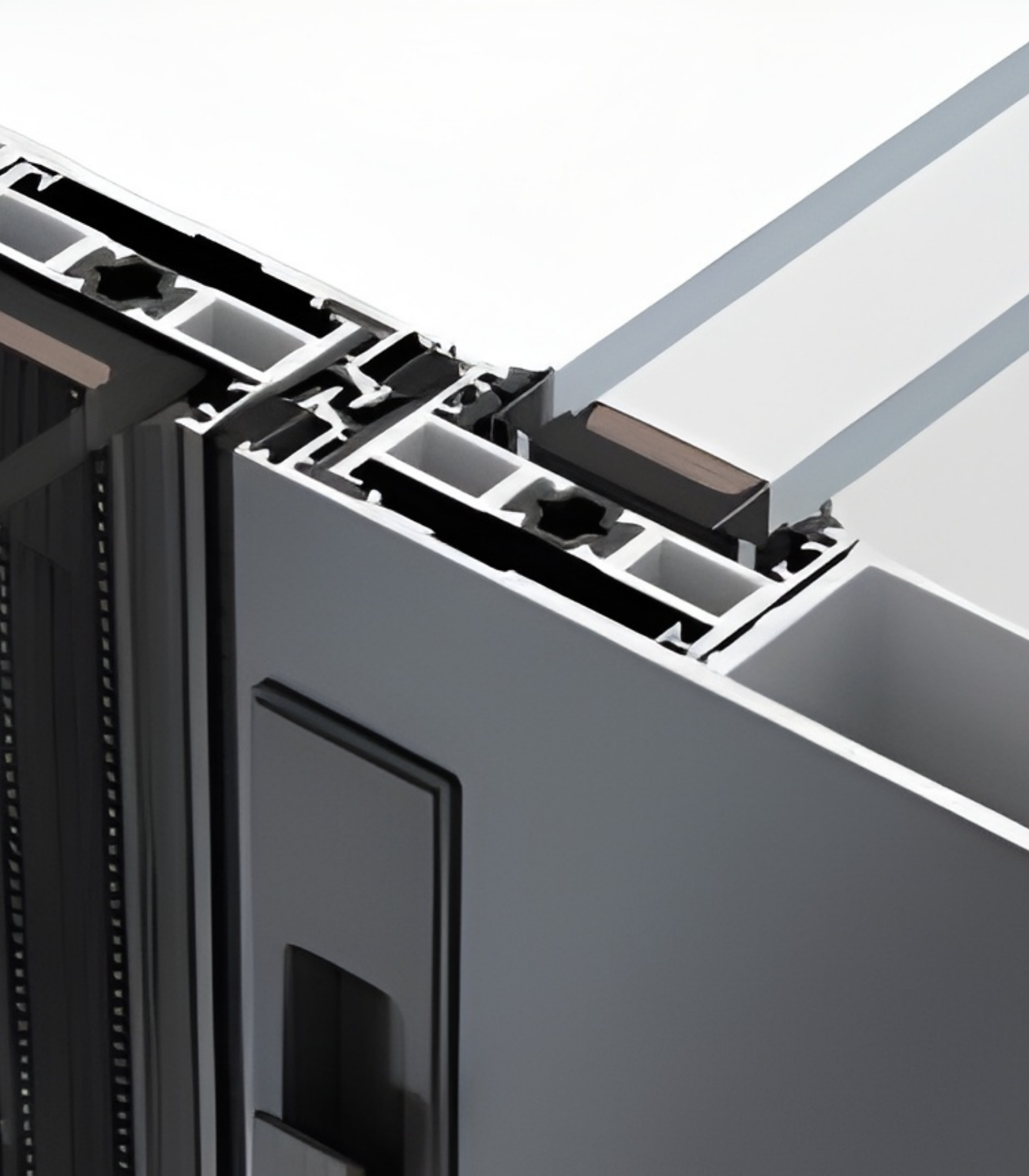

ViewLux builds the VLX 138 with a thermal break inside the extrusion, so the aluminum on the outside is not directly conducting heat to the aluminum on the inside. That break, paired with Low-E glass, is what earns the NFRC energy ratings that matter on a west-facing wall in Royal Palm Beach. You feel it in August, and you see it on the FPL bill.
Acoustic Performance
Panoramic doors mean more glass, and more glass usually means more noise. Laminated glass and tight perimeter sealing change that equation. On homes near Belvedere Road or the Turnpike corridor, we spec the acoustic advantages carefully so the door delivers the view without letting the traffic in.
Airtightness & Weather Seal

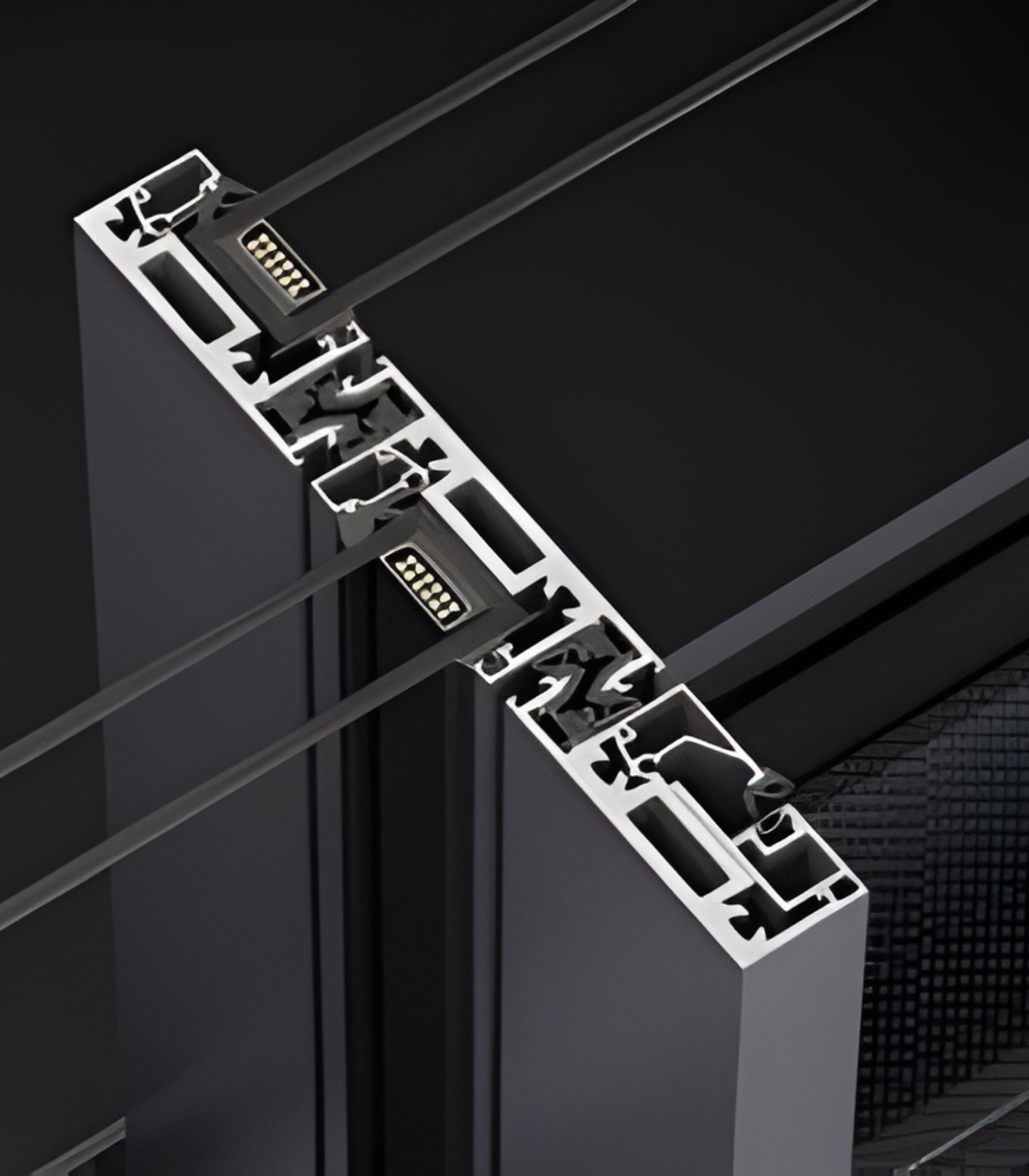

Every perimeter joint on a TruePane install gets AAMA 812 low-expansion foam sealant, and the interlocking panels are engineered with compression gaskets so the closed door reads as a wall, not a gap. In a Royal Palm Beach summer, a leaky door is a mold risk and a comfort problem. This one seals.
Waterproofing

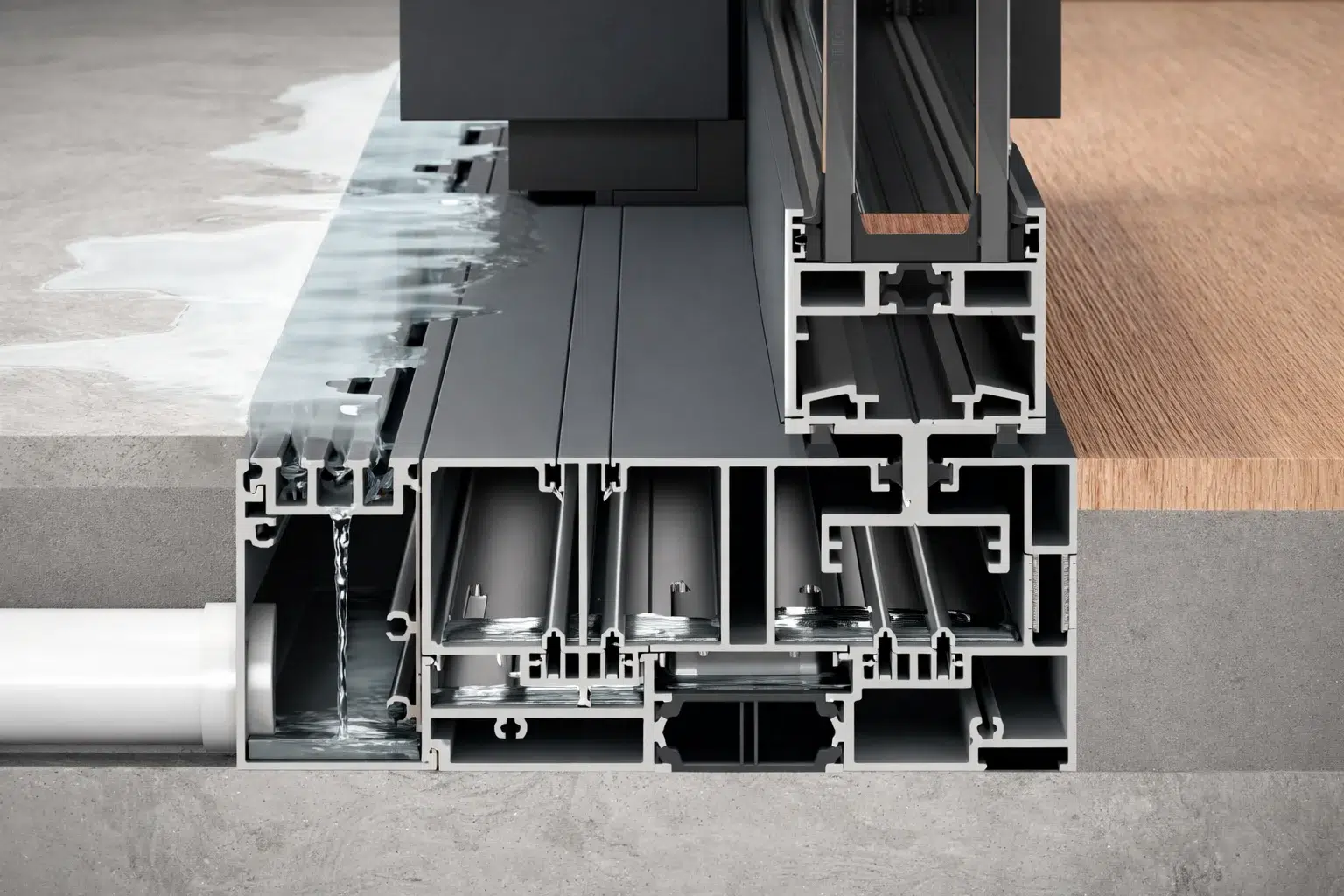

South Florida rain comes sideways during storm season. The VLX 138’s sill and interlock design directs water to weep channels instead of your floor, and our crew water-tests the finished install before we call the job done. If it holds under a hose at full pressure, it holds in an afternoon squall.
Wind Resistance
Royal Palm Beach sits in a high-velocity wind zone, and this door is wind-load rated for Palm Beach County requirements. When the project needs impact protection, we order laminated glass that meets the local codes, and the heavier panels still glide on the same stainless bearing design. You do not give up the panorama to be code-compliant.
Security & Hardware

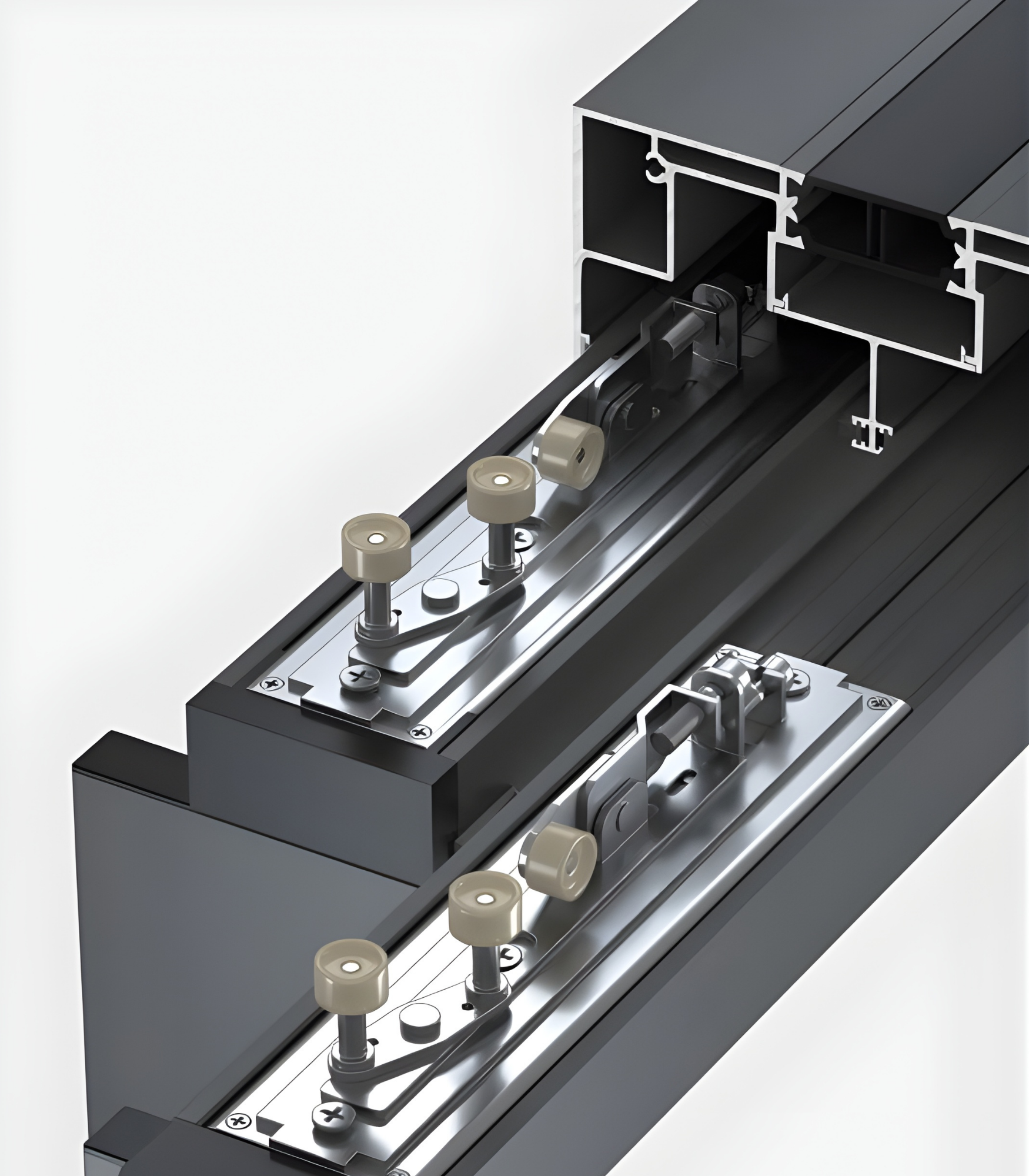

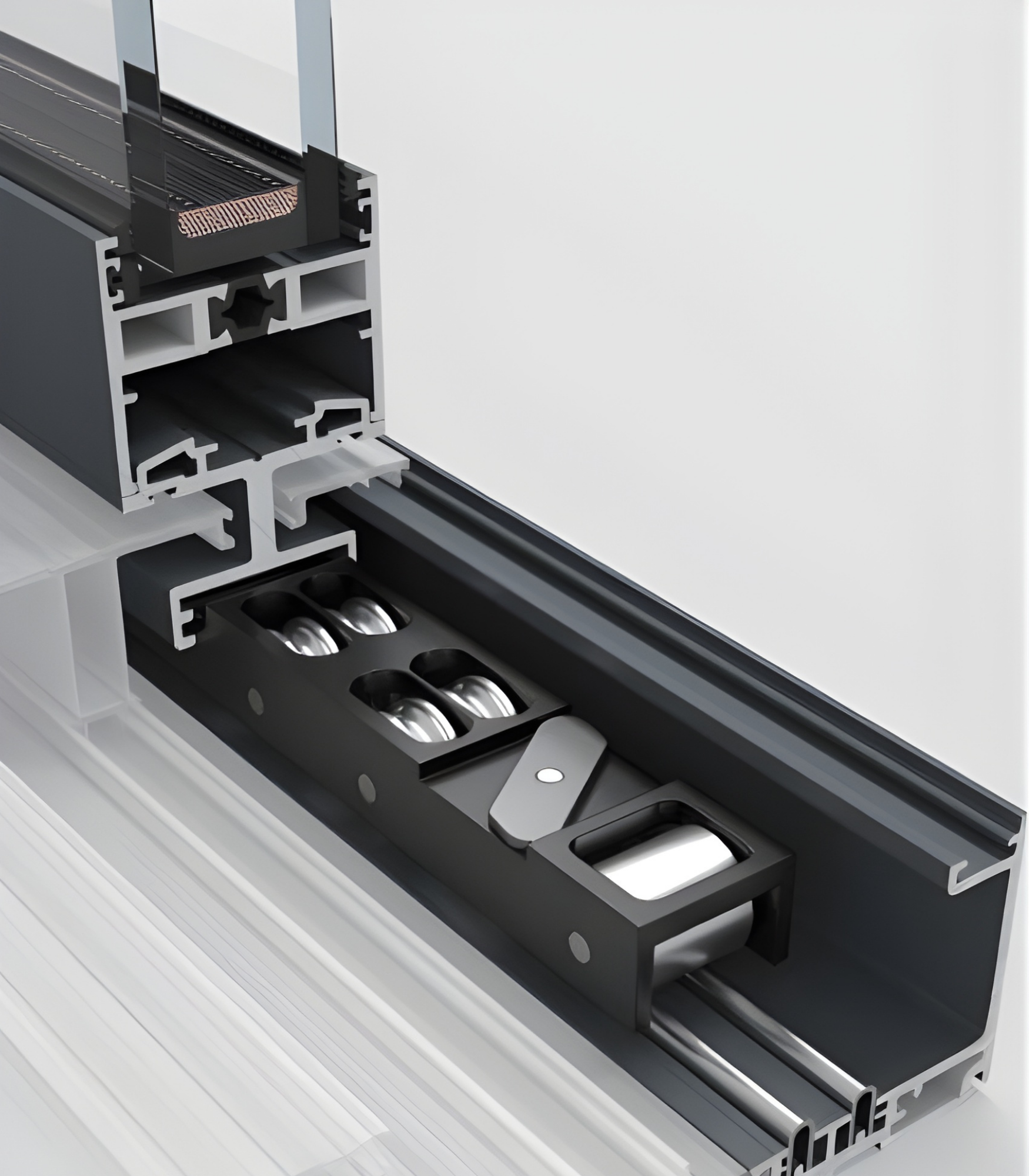

The stainless steel rollers sit in a full-length bearing track, and the multi-point locking hardware engages along the full panel height, not just a single latch tongue at the center. That means less flex at the meeting stile and a door that resists forced entry at the top and bottom, where cheap sliders fail first.
Color & Glass Options
Six finishes cover most architectural directions in Royal Palm Beach. Premium Black is the default for modern stucco homes and pairs hard against white walls. Pure White disappears into bright Florida interiors. Anodized Silver gives you that raw aluminum look, while Bronze and Champagne walk the line between contemporary and transitional. Teak Wood is the choice for coastal or island-style homes that want warmth without a wood door’s maintenance cycle.
On the glass side, Clear is for pure, unfiltered view. Low-E is what we recommend for most west and south elevations because it cuts heat gain without dimming the room noticeably. Frosted and Obscure give you private sightlines for a bathroom or a street-facing panel while still flooding the space with light. Black Tint and Gray Tint are aesthetic choices that also reduce glare on a pool-facing wall. Any of these can be built as impact-rated laminated glass when the opening requires windborne debris protection.
Installation by TruePane Windows & Doors in Royal Palm Beach
A panoramic slider is only as good as the rough opening it sits in. The panels can leave the ViewLux factory perfectly square and still bind, leak, or sag if the install crew shims it wrong. That’s the part we control, and it’s the part most door failures come back to.
Every TruePane install in Royal Palm Beach starts with a pre-install inspection of the rough opening. We check for deflection in the header, flatness of the substrate, and correct rough opening dimensions against the approved shop drawings. Then we set the frame level, plumb, and square to within an eighth of an inch, because a 20-foot track will magnify any error across its length. We back the frame with AAMA 812 low-expansion foam on every perimeter joint, which gives you the air and water seal that silicone alone can’t maintain as the building moves. The entire process is performed to AAMA 2400/2410 installation standards, and we water-test the closing joints before trim goes back on.
One thing we tell every Royal Palm Beach client: improper installation voids the manufacturer warranty. ViewLux honors their product warranty when the door is installed by an authorized partner like TruePane, but a door dropped in by a handyman or a cut-rate trim crew will not have that backing. With salt air, monsoonal rain, and a high-velocity wind zone all in play, you want a door that’s installed once, correctly, and covered. Call (386) 251-6745 and we’ll walk your opening before you spend a dollar on product.
Frequently Asked Questions - VLX 138 Panoramic Sliding Door
The VLX 138 is built to your exact opening size, finish, and glass package, so typical lead time from order to delivery at our Royal Palm Beach shop runs 6 to 10 weeks depending on the factory schedule and whether you’re adding impact glass or custom powder coat. We pin the delivery date down at contract, order the moment your deposit clears, and schedule your install window around a hard arrival date rather than a vague estimate. Call (386) 251-6745 and we’ll get you a current lead time for your specific configuration.
It can, when configured with Low-E glass that meets the current federal efficiency thresholds for doors in the South. The thermal break and NFRC ratings are what drive eligibility, not the frame color. We’ll give you the product documentation your tax preparer needs if your glass package qualifies, and we’ll tell you honestly upfront if the configuration you’re considering will not hit the credit metric. Call (386) 251-6745 with your rough glass goals and we’ll price it both ways.
ViewLux provides the manufacturer warranty on the frame, rollers, and glass, and it remains intact because TruePane Windows & Doors installs as an authorized partner per AAMA standards. The warranty specifics vary by component, and the critical condition is proper installation. A door installed out of square is a door the factory will not cover, which is exactly why we document every install with photos and water-test results. Ask us for the full warranty language when we quote your project.
Yes, within the engineering limits of the extrusion. The maximum span is up to 36 feet wide, and you’ll choose a 2-track, 3-track, or 4-track configuration to make the panel count and stacking width fit your opening. Panel heights are also made to order, so an 8-foot door and a 10-foot door are both available as long as the wind load calculation works for your exposure in Royal Palm Beach. Bring us your rough opening and we’ll tell you what the system can do, or design the opening around the door’s sweet spots if you’re in planning.
Aluminum frames need very little: wipe the track clear of sand and leaves, clean the glass with mild soapy water, and every six months run a dry cloth along the rollers and guide track to keep the stainless bearings rolling clean. The powder-coated finishes from ViewLux do not need painting or sealing, which is the whole point of choosing aluminum over wood in the Royal Palm Beach humidity. If a roller ever develops a flat spot, TruePane can source the replacement and get the door gliding like new again.
Get a Quote - VLX 138 Panoramic Sliding Door in Royal Palm Beach
If you’re weighing a panoramic slider for a Royal Palm Beach home, the next step is a site measurement and a real number, not a ballpark over the phone. Call TruePane Windows & Doors at (386) 251-6745 and we’ll schedule a free on-site measurement, review your glass and finish options, and deliver a line-item quote with no hidden allowances. You’ll know exactly what the door costs, what the install costs, and when it gets here.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Royal Palm Beach and greater Palm Beach County.
