Picture windows are the non-operable workhorses of Florida architecture. They don’t open, they don’t slide, and that’s exactly why Royal Palm Beach homeowners choose them: one uninterrupted sheet of laminated impact glass, engineered to take a hurricane’s worst while giving you a clean, unobstructed view. At TruePane Windows & Doors, we sell and install Picture & Fixed Windows across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, sized to your opening and matched to your wind zone. If you’re planning a new build, a remodel, or replacing a failed fixed panel in Royal Palm Beach, call (386) 251-6745 for a free on-site measurement.

Call (386) 251-6745

Product Overview - Picture & Fixed Windows

In hurricane-prone construction, a fixed window is often the strongest window in the wall. There are no moving sashes, no rollers, no tracks to fail under pressure. The glass is laminated impact-rated and set directly into a reinforced aluminum or vinyl frame, which means the whole assembly behaves as one structural unit when wind loads hit. That’s why architects and builders in Royal Palm Beach specify fixed picture windows for large openings, transoms, and second-story feature walls where an operable unit would be heavier, more expensive, and structurally unnecessary.

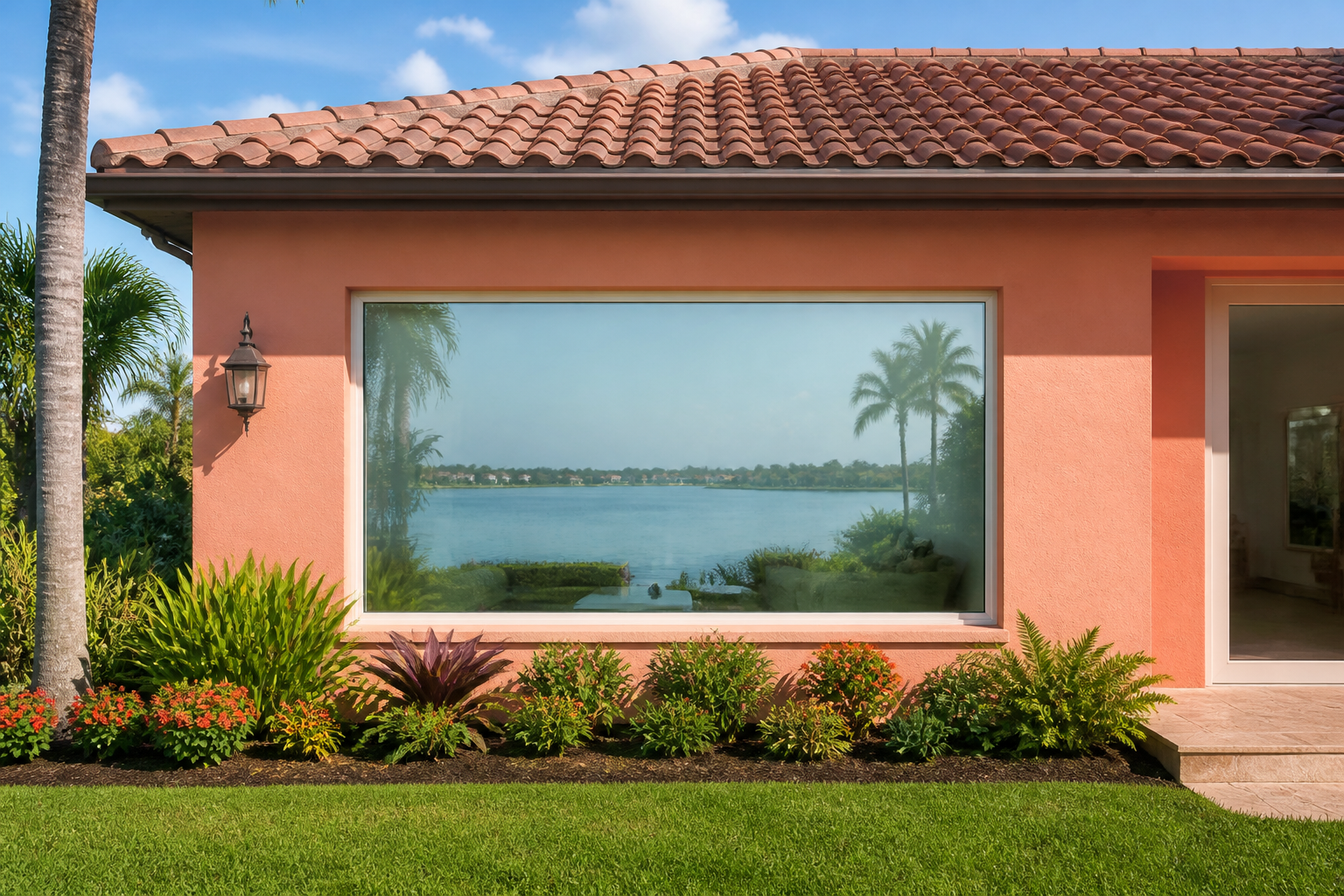

The product is exactly what the name suggests: non-operable laminated impact glass panels, built for maximum unobstructed views. You’ll often see them paired with operable units on either side, maybe a casement or horizontal roller on each flank, with a big fixed panel in the center of the living room wall. The fixed panel carries the view. The operable units carry the ventilation. It’s a layout that works especially well in Royal Palm Beach homes where sight lines point toward a pool, a lake, or a preserve, and where you don’t want a vertical mullion or a sash frame cutting through the middle of the scene.

We configure each Picture & Fixed Window to the opening rather than forcing a stock size into the wall. Maximum width runs up to 120 inches, which covers most residential applications in this market. The frame is set level, plumb, and square, sealed at the perimeter per AAMA 812 practice, and anchored to handle the design pressure your specific wind zone requires. We don’t oversell the rating and we don’t underbuild the opening. The window is matched to the structure, not the other way around.

Technical Specifications

• Frame materials: Aluminum or vinyl, selected by exposure and architectural style. Aluminum for wide spans and modern lines; vinyl for thermal performance and coastal homes where salt air punishes lesser finishes.
• Maximum size: Up to 120 inches wide. Height varies by configuration and design pressure requirement, confirmed on your quote.
• Glass options: Laminated impact glass with a PVB interlayer, Low-E insulated glass, tinted glass, or clear glass. Impact laminates and Low-E can be combined for hurricane protection plus solar control.
• Finish options: White, Almond, Bronze, Black, and Tan. Finishes are applied to the frame, not painted on site, so the color holds up to Florida sun.
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers are issued per configuration and verified on your specific quote, never assumed.

Hurricane & Compliance Performance

Laminated Impact Glass
The glass is built with a PVB (polyvinyl butyral) interlayer sandwiched between two panes. Under impact, the glass may crack but the interlayer holds the fractured pieces in the frame, keeping the building envelope sealed. Debris doesn’t enter the home. Wind-driven rain doesn’t follow it. That’s the entire function of an impact-rated fixed window, and it’s why this product is specified in HVHZ regions like Royal Palm Beach.

Miami-Dade NOA / Florida Product Approval
Each configuration carries a Miami-Dade Notice of Acceptance and Florida Product Approval number, issued per configuration. This is not a blanket rating across all sizes or glass packages. When we quote your project, we confirm the specific NOA and FL approval numbers for the exact unit you’re buying. Your permit submittal in Royal Palm Beach depends on that documentation being correct.

FBC / HVHZ Compliance
These windows are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. HVHZ is the strictest windborne-debris standard in the state, and it applies to Royal Palm Beach and most of Palm Beach County. An impact window that’s only rated for the non-HVHZ Florida market won’t pass plan review here. We only supply units that do.

TAS 201 / 202 / 203 Testing Context
HVHZ-rated products are tested under a specific protocol family: TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. TAS 201 fires a lumber missile at the glass and frame assembly. TAS 202 cycles positive and negative pressures to simulate hurricane gusts. TAS 203 confirms the latching and anchoring resist forced entry. If a fixed window carries an HVHZ approval, it’s passed these tests in a certified lab.

Design Pressure for Your Wind Zone
Design pressures are matched to your wind zone, up to +/-100, never higher. We don’t inflate the rating to impress you. A window rated for more pressure than your zone requires costs extra and gains you nothing. A window rated for less is a code violation. We calculate what your opening needs based on your location in Royal Palm Beach, the building height, and the window’s position on the wall, then supply the unit with the right structural rating.

Energy Performance (Low-E / Insulated Options)
For homes that fight afternoon sun on west-facing walls, Low-E insulated glass reduces solar heat gain without darkening the room. The fixed picture window in a living room or dining area is often the largest glass surface in the house, so the glass package you choose there has an outsized effect on comfort. We walk you through clear, tinted, and Low-E options at the quote stage.

Color & Glass Options

The five finish options cover most of the architecture you see in Royal Palm Beach. White and Almond fit the Mediterranean and Spanish-influenced homes common throughout the Village and surrounding communities. Bronze and Black work on modern builds, especially where the window frame is meant to read as a thin dark line against a stucco wall. Tan sits between the two camps, a warm neutral that disappears on earth-toned exteriors. All finishes are factory applied and hold their color far better than site-painted frames.

On the glass side, clear laminated impact glass is the default for homeowners who want maximum visible light and an absolutely clean view. Tinted glass cuts glare and adds privacy during the day, which matters for fixed panels facing a street or a neighbor’s second story. Low-E insulated glass is the pick for large panels on east- or west-facing walls, where the sun pounds the glass for hours. You can combine laminated impact glass with Low-E, which is the setup we recommend most often for big fixed windows in Royal Palm Beach: hurricane protection on the outside, solar control on the inside.

Installation by TruePane Windows & Doors in Royal Palm Beach

An NOA-rated window is only as good as its installation. The product approval assumes a specific anchoring pattern, fastener schedule, and perimeter seal. If any of that is done wrong in the field, the rating means nothing. We install every Picture & Fixed Window per AAMA 2400/2410 practice. That means the opening is inspected before the old window comes out, the rough opening is checked for rot or settlement, and the new frame is set level, plumb, and square before the first anchor goes in.

The perimeter gets an AAMA 812 low-expansion foam sealant, not a bead of caulk smeared over a gap. Foam seals the cavity between the frame and the rough opening and stays flexible as the building moves through Florida’s heat and humidity cycles. After the window is anchored and sealed, we run a water test on the installation to confirm nothing gets through the perimeter, then clean up the site and haul away the old unit. We’ve installed fixed impact windows across Royal Palm Beach, from single-family homes in the Village to newer communities on the western side of town, and the process is the same every time: measure, confirm the NOA, set the window, seal it right, test it.

Permitting is part of the job in an HVHZ jurisdiction. The product approval documents get submitted with the permit application, and the inspector checks the installation against the approved plans. We know what Royal Palm Beach and Palm Beach County plan reviewers expect to see, and we prepare the submittal accordingly. Coastal exposure, wind zone, and the window’s height above grade all factor into the required design pressure, and we calculate all of that before we order the window.

Frequently Asked Questions - Picture & Fixed Windows

What wind zone / design pressure is the Picture & Fixed Window rated for?
Design pressures are matched to your wind zone, up to +/-100, never higher. The exact rating for your opening depends on where your home sits in Royal Palm Beach, the building’s height, and the window’s position on the wall. We calculate the required pressure on site and supply a unit that meets it without overshooting. Call (386) 251-6745 and we’ll confirm the number for your specific opening.

What is the lead time?
Most Picture & Fixed Window configurations in Royal Palm Beach run four to eight weeks from order to delivery, depending on the glass package, the frame finish, and the manufacturer’s current production queue. If you’re working against a closing date or a contractor’s schedule, we order early and keep you updated. Call (386) 251-6745 and we’ll give you a realistic timeline for your specific configuration.

Does it require a Miami-Dade NOA or Florida Product Approval submittal for my permit?
Yes. In Royal Palm Beach, the permit submittal for an impact-rated fixed window must include the product approval documentation for the exact configuration being installed: size, glass type, frame material, and design pressure. We pull the current NOA and FL approval numbers for your unit and include them in the submittal package. Without them, plan review stalls. With them, the process moves.

Can I customize the size or configuration?
Yes, within the engineering limits of the approved system. The panel can run up to 120 inches wide, and the height is set by the design pressure required for your wind zone and the available NOA configurations. We don’t field-cut corners or force a size that isn’t approved. We order the unit to your opening dimensions from the manufacturer, matched to your exact glass and finish specs. Call (386) 251-6745 with your rough measurements and we’ll tell you what’s possible.

How do I maintain the frame?
Maintenance on a fixed impact window is mostly about the perimeter. Wash the frame with mild soap and water twice a year and check the exterior sealant for cracks or separation, especially after a storm or a long dry season. The glass cleans with standard window cleaner; don’t use abrasives on the laminate. The frame itself needs nothing beyond an occasional rinse. If you notice any sealant pulling away from the stucco, call us before water works its way into the rough opening.

Get a Quote - Picture & Fixed Windows in Royal Palm Beach

If you’re replacing a fixed window or planning a new opening in Royal Palm Beach, call TruePane Windows & Doors at (386) 251-6745. We’ll measure the opening, confirm your wind zone and required design pressure, and put together a line-item quote with the exact glass, finish, and NOA documentation. The measurement is free, and the quote tells you exactly what you’re buying.
