The VLX 100 Pivot Door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of traditional side hinges. It holds oversized glass panels up to 60 inches wide and 120 inches tall, making it the kind of door that changes the entire face of a home. In Royal Palm Beach, where modern single-story ranches and new-construction estates sit side by side, this door fits both. TruePane Windows & Doors is an authorized ViewLux installation partner, which means we sell, measure, install, and service this door under the manufacturer’s guidelines. Call (386) 251-6745 to talk through your project or schedule a free on-site measurement in Royal Palm Beach, FL.

Call (386) 251-6745

Product Overview - VLX 100 Pivot Door

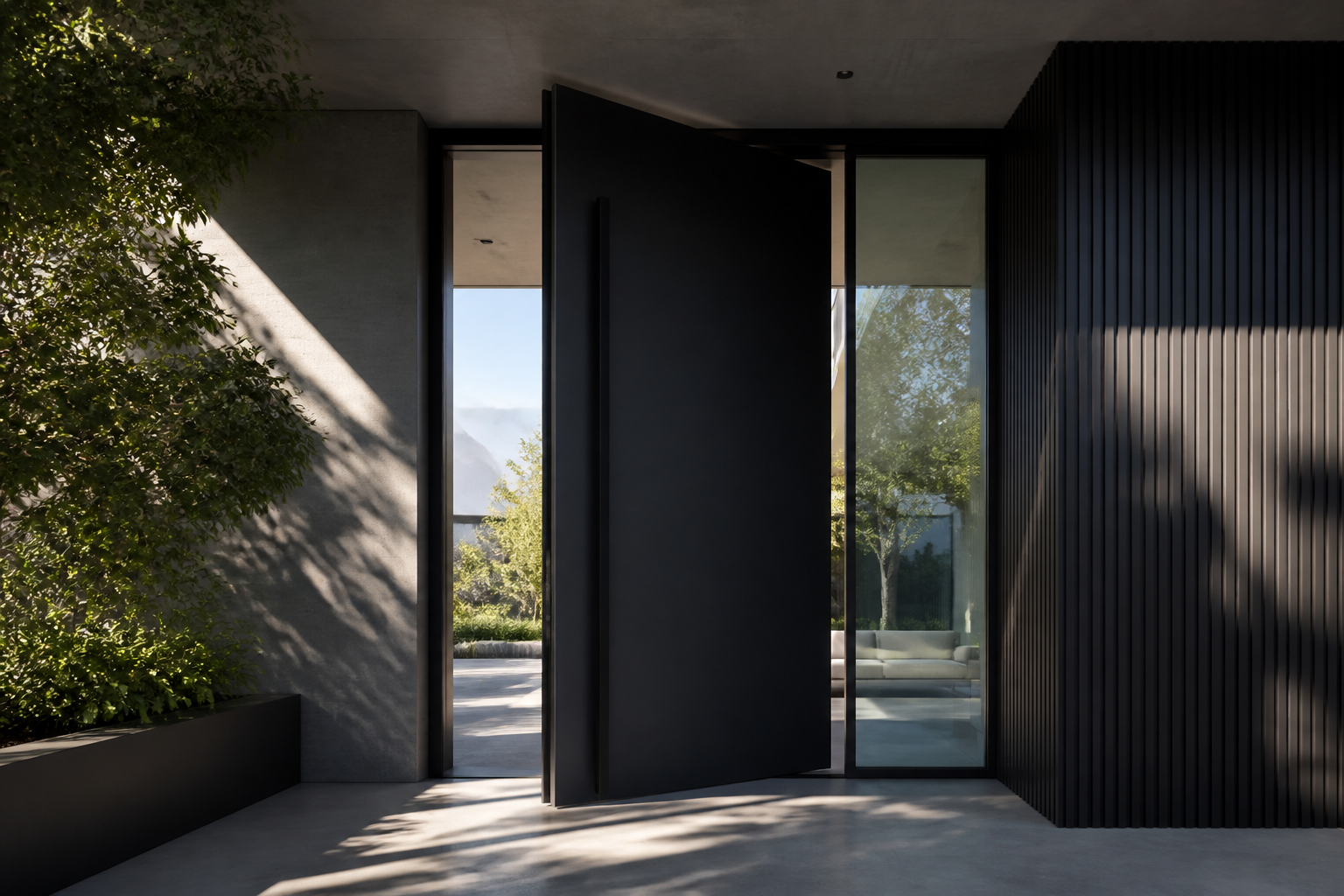

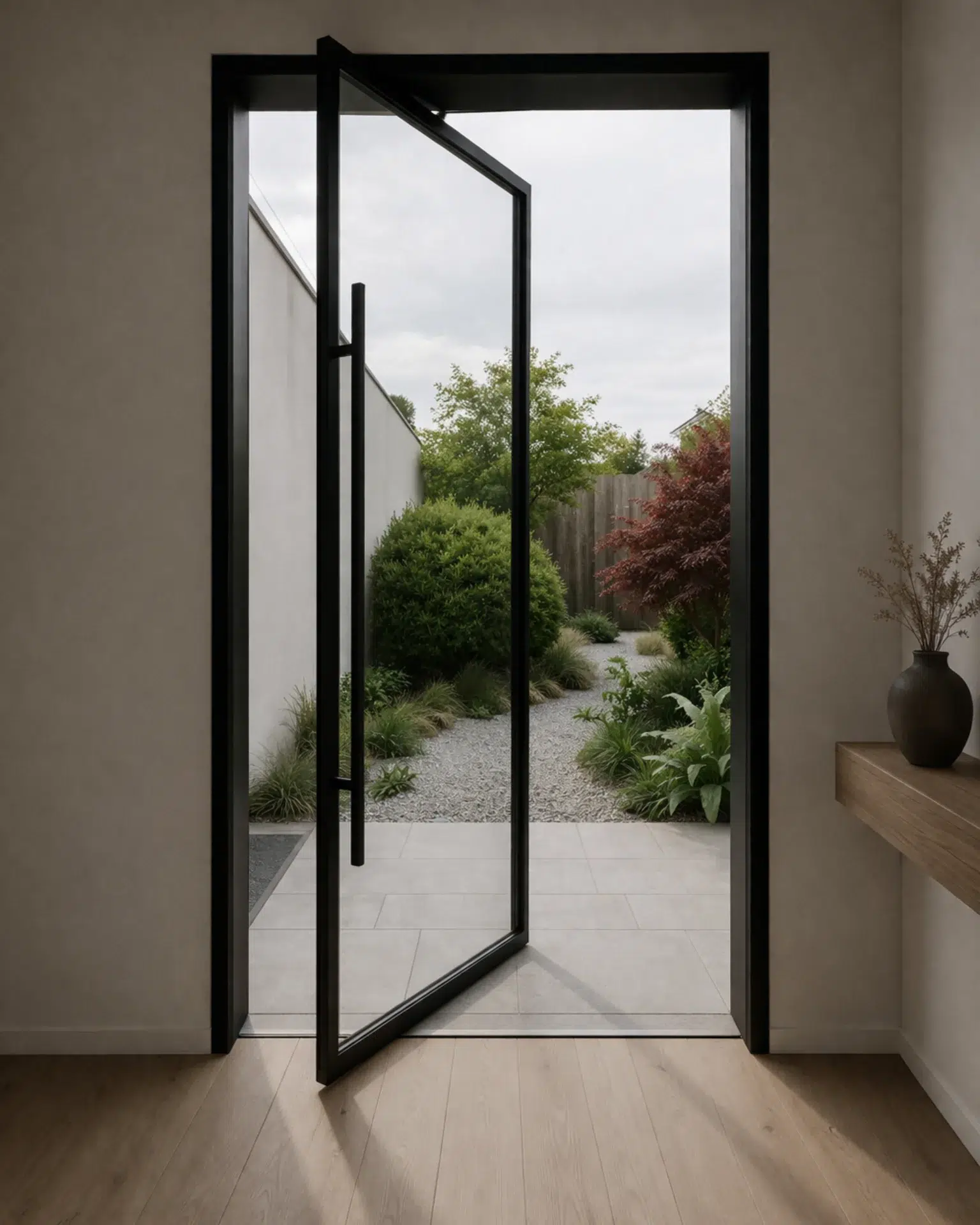

The VLX 100 isn’t a door you buy on a whim. It’s an architectural statement, and that’s the whole point of the design. Instead of a conventional hinged slab, the door rotates on a vertical center axis, so the hardware sits top and bottom rather than on the side. This changes how the weight is distributed, which is why a single panel can carry glass that would sag a traditional frame. The frame is heavy-duty aluminum with a 0.098-inch wall thickness and a 2.56-inch profile width. That’s a substantial extrusion, and it’s the reason the door feels solid rather than hollow when it moves.

Homeowners choose the VLX 100 for a few reasons. Some want the daylight and sightlines that oversized glass delivers. Others want the geometry of a center-pivot slab that divides a room differently than a standard swing. And many in Royal Palm Beach simply want an entry that doesn’t look like every other front door on the block. The door performs well in modern and transitional architecture but works equally well on Mediterranean-style homes when ordered in Bronze or a wood-look finish. As an authorized ViewLux partner, TruePane Windows & Doors has direct access to the full product line, current lead times, and factory support, which matters when you’re ordering a door this customized. Call (386) 251-6745 and we’ll walk you through what fits your elevation.

Technical Specifications

Here’s what the VLX 100 offers on paper, reframed in plain language so you know what you’re actually paying for when you order through TruePane Windows & Doors in Royal Palm Beach, FL.

• Frame construction: Aluminum with 0.098-inch wall thickness and 2.56-inch profile width, built to carry oversized glass without flexing.
• Maximum panel size: 60 inches wide by 120 inches tall. Single-panel pivot configuration.
• Glass types: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated. Laminated is the impact-rated option for storm protection in South Florida.
• Finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Hardware: Top and bottom pivot sets engineered for the panel weight. Hidden closer options available.
• Performance compliance: Thermal break construction, NFRC-rated energy performance, AAMA 2400/2410 installation standard, AAMA 812 perimeter sealant.

Performance Features

Thermal Efficiency
Aluminum conducts heat, which is a problem in Royal Palm Beach summers. The VLX 100 addresses this with a polyamide thermal break built into the profile. That break interrupts heat transfer through the frame, and the result is NFRC-rated thermal performance that keeps air-conditioned air inside where it belongs. You’ll notice cooler interior frame surfaces and a lower summer energy load on the room facing the door.

Acoustic Performance
If your home sits near Southern Boulevard, Okeechobee Boulevard, or any road with consistent traffic, sound control matters. Laminated glass in the VLX 100 dampens exterior noise meaningfully. Pair the laminated option with the door’s rigid aluminum frame and a properly sealed perimeter, and you’ll feel the difference when the door closes. It’s a quieter room, not just a prettier doorway.

Airtightness & Weather Seal
The perimeter seal on a pivot door has to work harder than on a conventional swing because the slab passes through the frame plane differently. TruePane Windows & Doors installs the VLX 100 with AAMA 812 low-expansion foam sealant on every perimeter joint, then adjusts the weatherstripping so the closed door sits tight against all four sides. No daylight showing at the corners, no air moving around the slab.

Waterproofing
South Florida gets sideways rain, and pivot doors have a bottom pivot point that sits close to the threshold. The VLX 100 is engineered with a sloped sill and a compression gasket system that carries water away from the interior. Our install crew in Royal Palm Beach verifies every threshold is bedded in sealant and sloped before the door is hung, then runs a water test after install. If water gets in, we find it and fix it before we call the job done.

Wind Resistance
A 60-by-120-inch pane of glass is a big sail, and Royal Palm Beach sits in a high-wind-design zone under Florida Building Code. The VLX 100 is wind-load rated for the local climate, and when ordered with laminated impact glass it’s a legitimate storm-protection product, not just an architectural feature. That’s the difference between a decorative pivot door and one you can rely on in hurricane season.

Security & Hardware
The top and bottom pivot hardware on the VLX 100 is sized for the panel weight, not generic off-the-shelf hardware retrofitted to fit. Multi-point locking is available, and the laminated glass option adds a layer of intrusion resistance that standard tempered glass alone doesn’t provide. The door is as secure as it is elegant, and TruePane Windows & Doors in Royal Palm Beach quotes it both ways so you can see the cost difference.

Color & Glass Options

The VLX 100 comes in six finishes, and the right one depends on your home’s exterior palette. Premium Black is the most requested in Royal Palm Beach right now, especially on white or light stucco homes where the contrast makes the entry pop. Pure White suits coastal modern and Key-West-style exteriors. Anodized Silver has a metallic, industrial character that pairs with concrete and glass. Bronze is the classic choice for Mediterranean, Spanish, and older Florida ranch homes. Champagne is warmer and less common, good for clients who want something recognizable but not black. Teak Wood is a wood-grain aluminum finish that delivers the warmth of a timber door without the maintenance of actual wood in Florida humidity.

Glass choice comes down to three questions: privacy, energy, and storm protection. Clear maximizes sightlines. Frosted and Obscure add privacy while still passing light, commonly used on entries facing a street or neighbor. Low-E reduces solar heat gain, which matters when the door faces west in a Royal Palm Beach afternoon. Tempered is safety-rated and required when the glass sits near the floor or in a door. Laminated is the impact-rated option and holds the glass together if struck. Call (386) 251-6745 if you’re torn between two options. We’ll bring samples to your home.

Installation by TruePane Windows & Doors in Royal Palm Beach

Pivot doors are not a product you hand to any generalist crew. The panel is oversized, heavy, and has to be set so the pivot axis is dead plumb. If the install is off by even a fraction of an inch, the door binds, drags, or swings on its own. That’s why TruePane Windows & Doors handles every VLX 100 installation in Royal Palm Beach with our own team, not subcontractors.

Our process begins with a pre-install inspection of the rough opening. We check the subfloor for level, verify the header can carry the panel weight, and confirm the opening dimensions match the approved shop drawings. Then we set the frame level, plumb, and square, shimming as needed so the reveal stays consistent around the full perimeter. Every visible joint is sealed with AAMA 812 low-expansion foam, the same standard referenced in the AAMA 2400/2410 installation guidelines. After the slab is hung, we adjust the pivot hardware until the door moves with fingertip effort and stays put when released. Then we run the water test, clean the glass, and walk you through operation and care.

Royal Palm Beach climate adds two considerations: humidity and wind. We account for both during install, from drainage placement at the threshold to fastener selection for the wind zone. And one more thing worth knowing: if a non-authorized crew installs this door, the manufacturer warranty may not apply. Buying through TruePane Windows & Doors keeps your warranty intact because we’re an authorized ViewLux partner, and our installs are documented to factory standards. Call (386) 251-6745 and ask us anything about the process. We’re in Royal Palm Beach, FL, and we’re glad to walk you through it.

Frequently Asked Questions - VLX 100 Pivot Door

What is the lead time for the VLX 100 Pivot Door?
Lead time for the VLX 100 Pivot Door typically runs 6 to 10 weeks from the date we confirm your order and deposit with ViewLux in Royal Palm Beach, FL, though custom finishes and laminated glass can extend it. We confirm production timelines before you commit, so there are no surprises. Call (386) 251-6745 for the current lead time.

Does the VLX 100 qualify for energy tax credits?
The VLX 100 may qualify for federal energy tax credits if ordered with Low-E glass that meets the current efficiency thresholds, since it carries an NFRC rating and has a true thermal break. Qualification depends on the specific glazing package and your tax year. We can quote the eligible configuration and give you the performance figures your tax preparer will need. Call (386) 251-6745 and we’ll pull the numbers for you.

What warranty comes with the Pivot Door?
The VLX 100 carries the manufacturer’s standard product warranty through ViewLux, and TruePane Windows & Doors in Royal Palm Beach backs our installation with a separate workmanship warranty. The product warranty applies when the door is installed by an authorized partner like us, which is one more reason to skip the generalist crews. Call (386) 251-6745 and we’ll review exact coverage with you.

Can I customize the size?
The VLX 100 can be built in any size up to the maximum panel dimension of 60 inches wide by 120 inches tall, so the panel is cut to your opening rather than forcing your framing to match a stock size. Custom sizing is standard on this series, not an upcharge. Call (386) 251-6745 with your rough opening and we’ll tell you what fits.

How do I maintain the aluminum frame?
Maintenance on the VLX 100 aluminum frame is simple: wash the frame and glass with mild soap and water every few months, keep the bottom track or threshold clear of debris, and lightly lubricate the pivot hardware once a year. That’s the entire routine, even near the coast in Royal Palm Beach, FL. Call (386) 251-6745 if you ever want us to service the door. We’re local.

Get a Quote - VLX 100 Pivot Door in Royal Palm Beach

If you’re ready to see a VLX 100 Pivot Door on your own home in Royal Palm Beach, FL, let’s start with a measurement. We’ll come out, inspect your opening, talk through glass, finish, and hardware, and put a written line-item quote in your hands. Call (386) 251-6745 to schedule your free on-site measurement with TruePane Windows & Doors.
